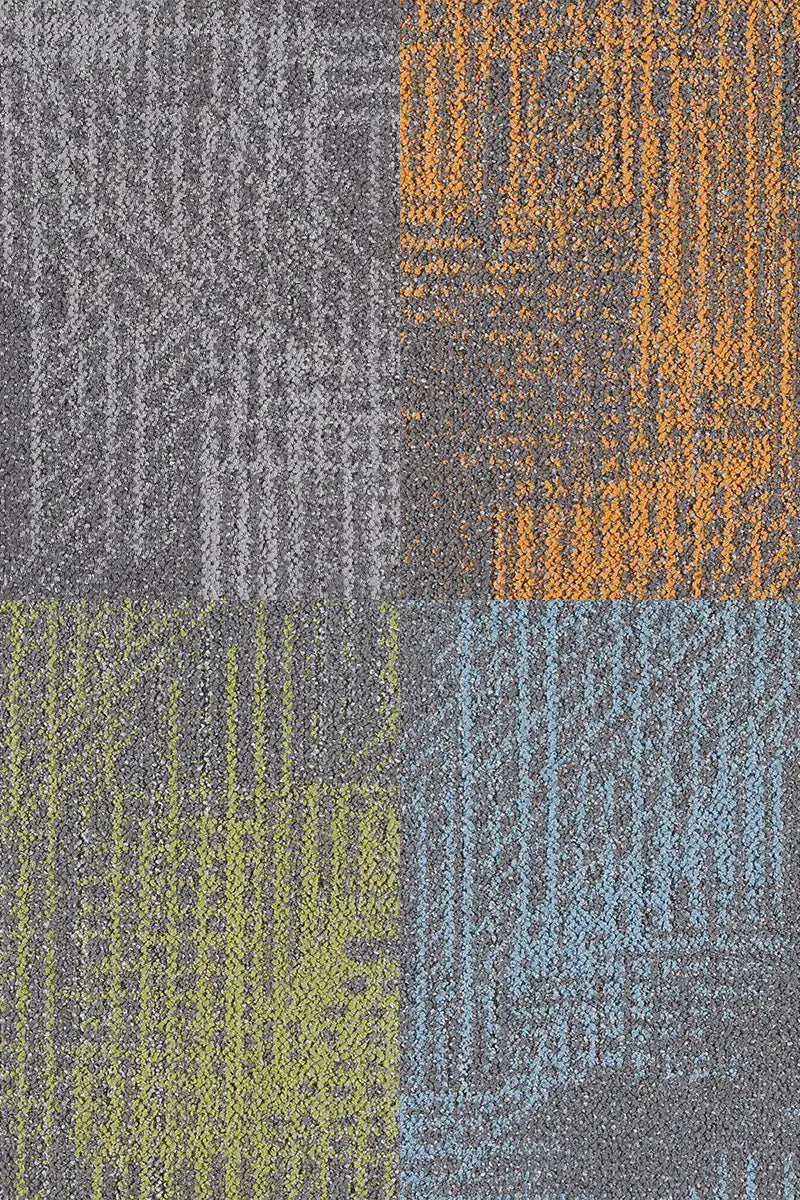

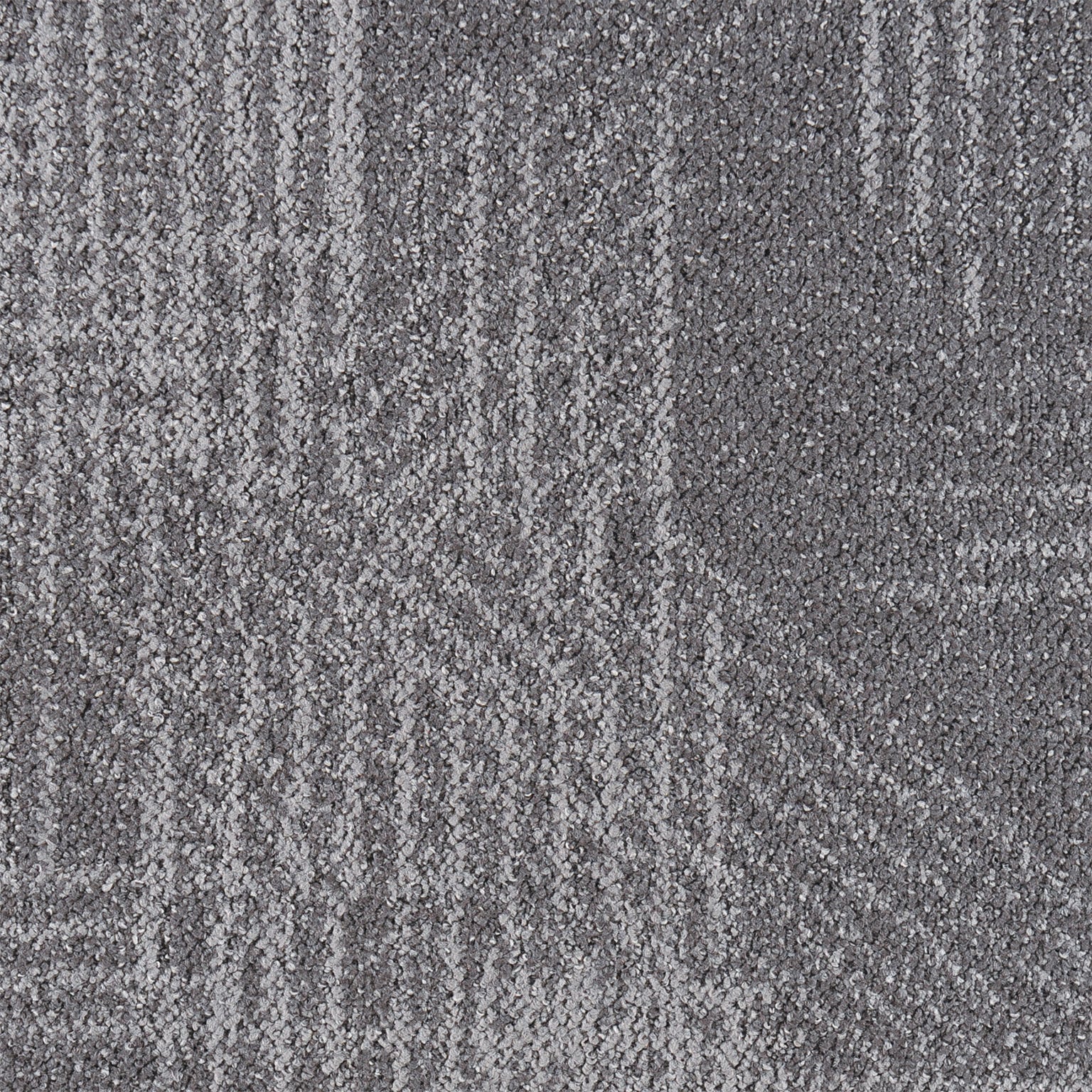

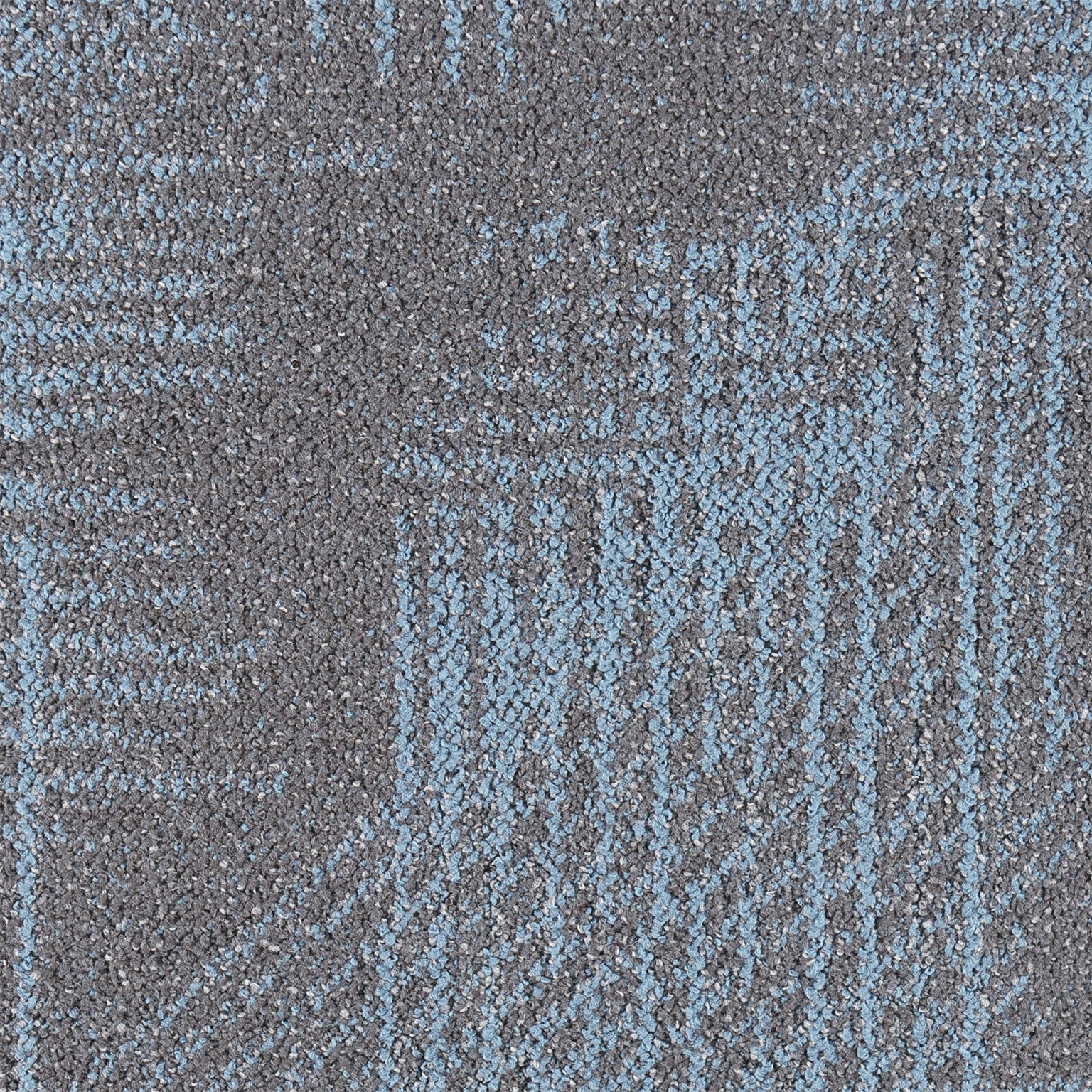

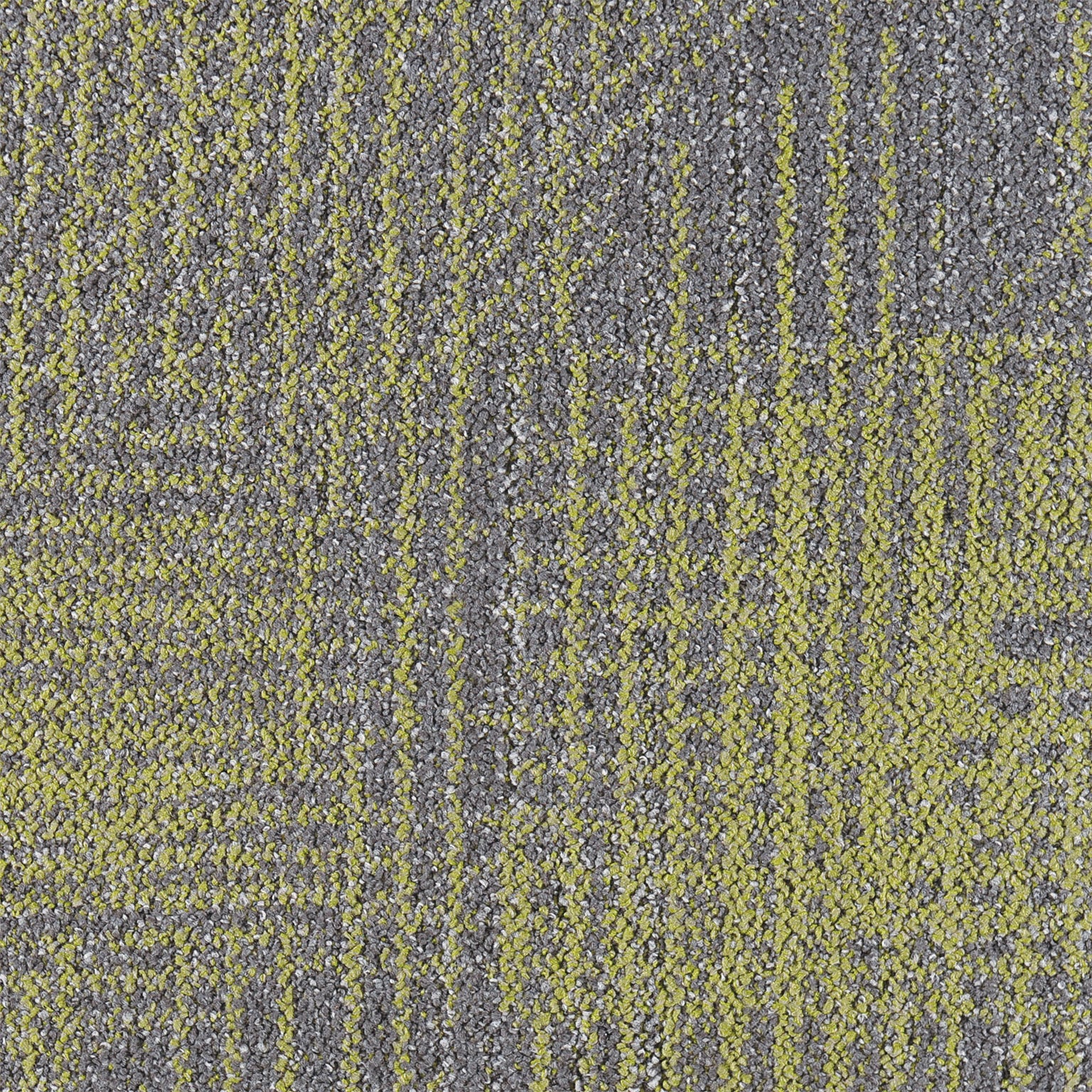

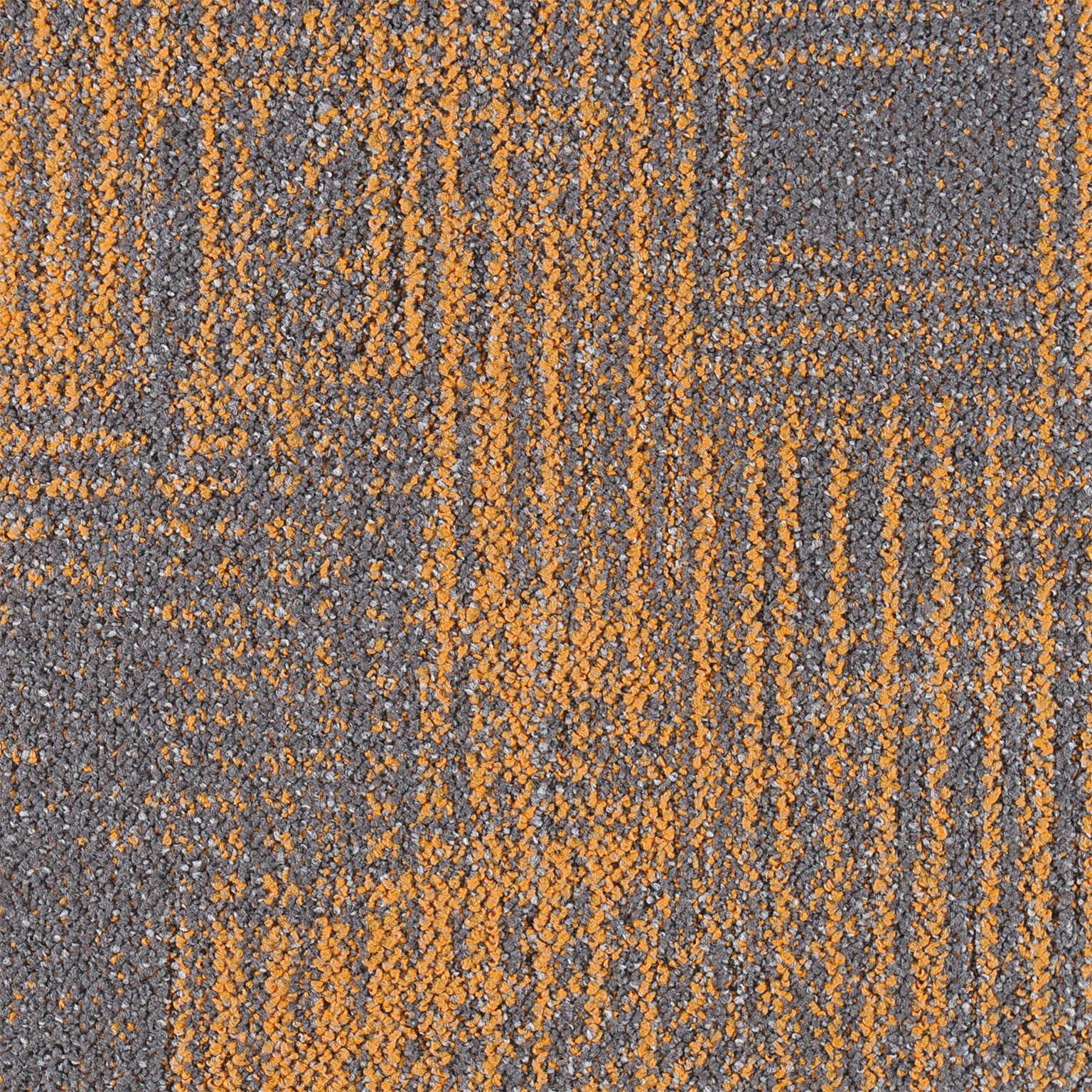

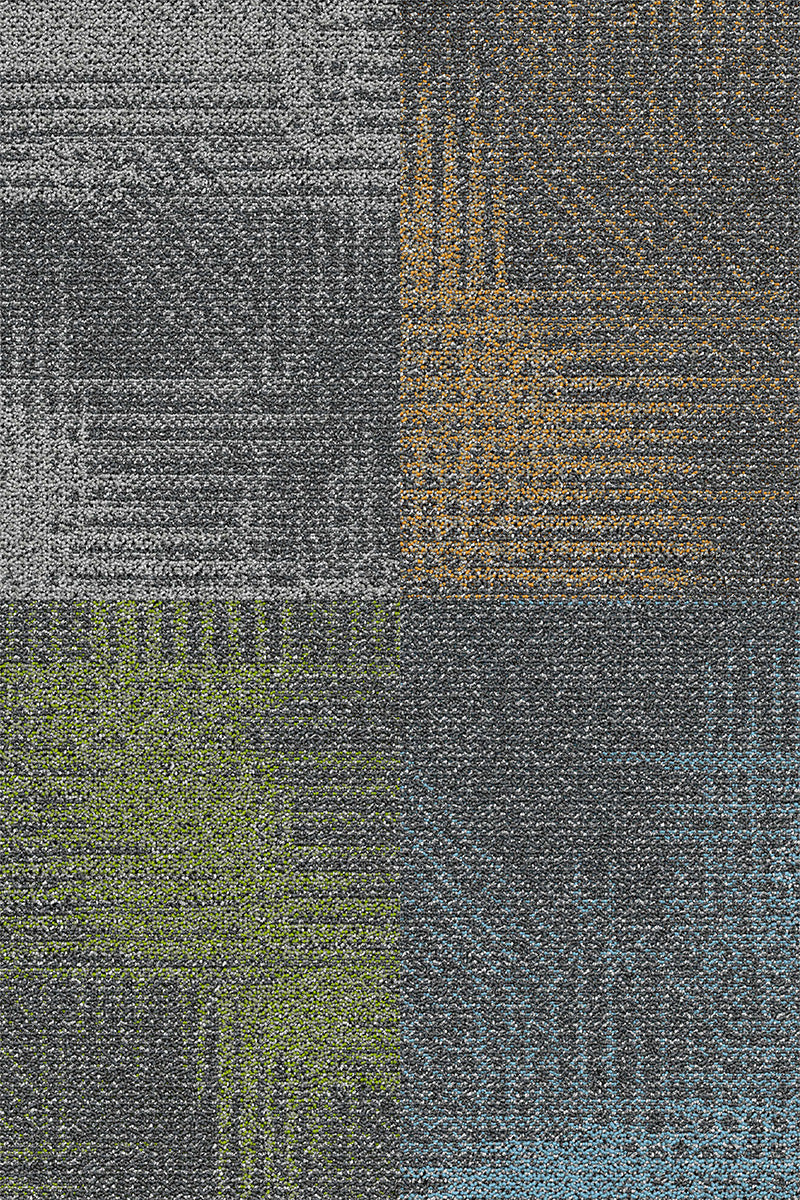

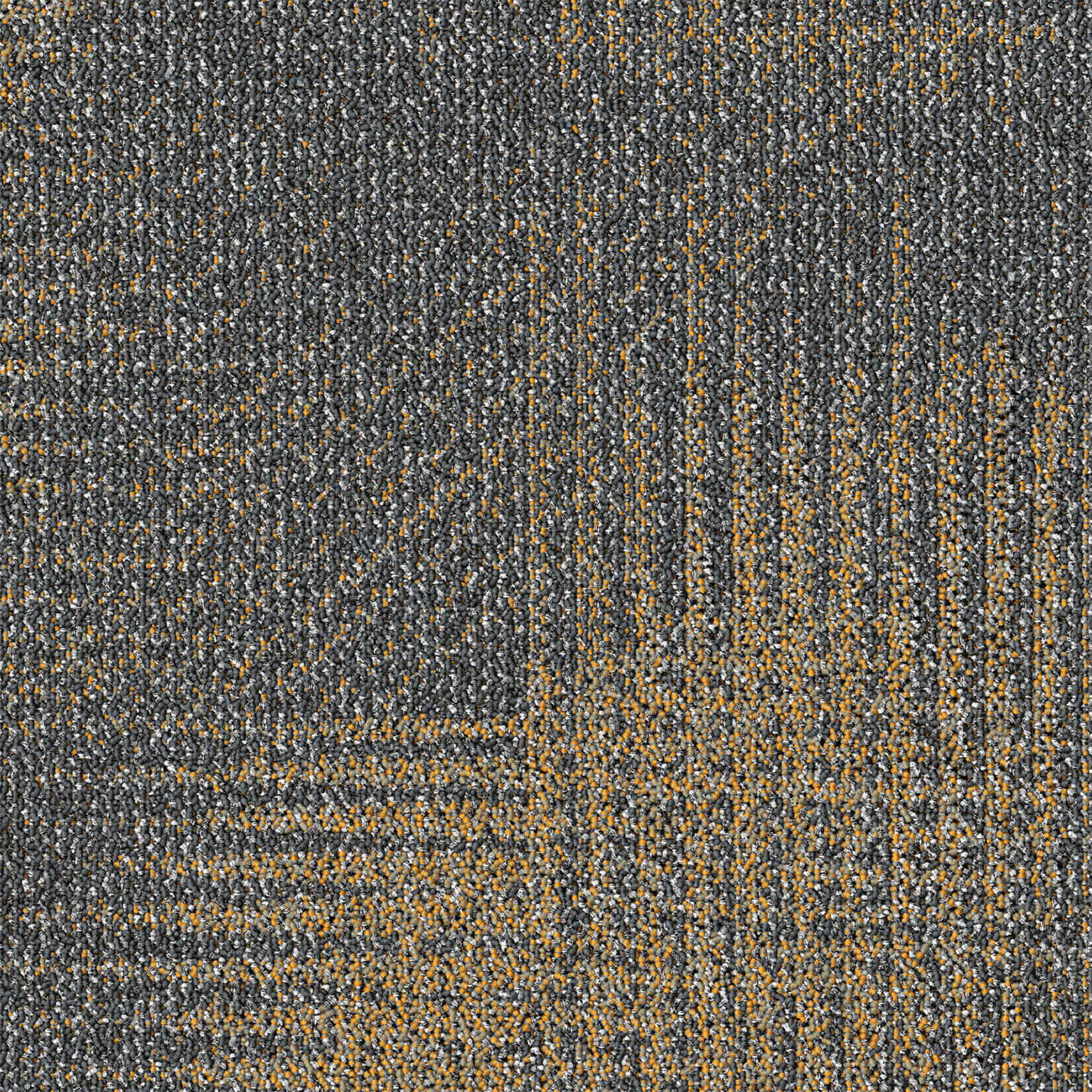

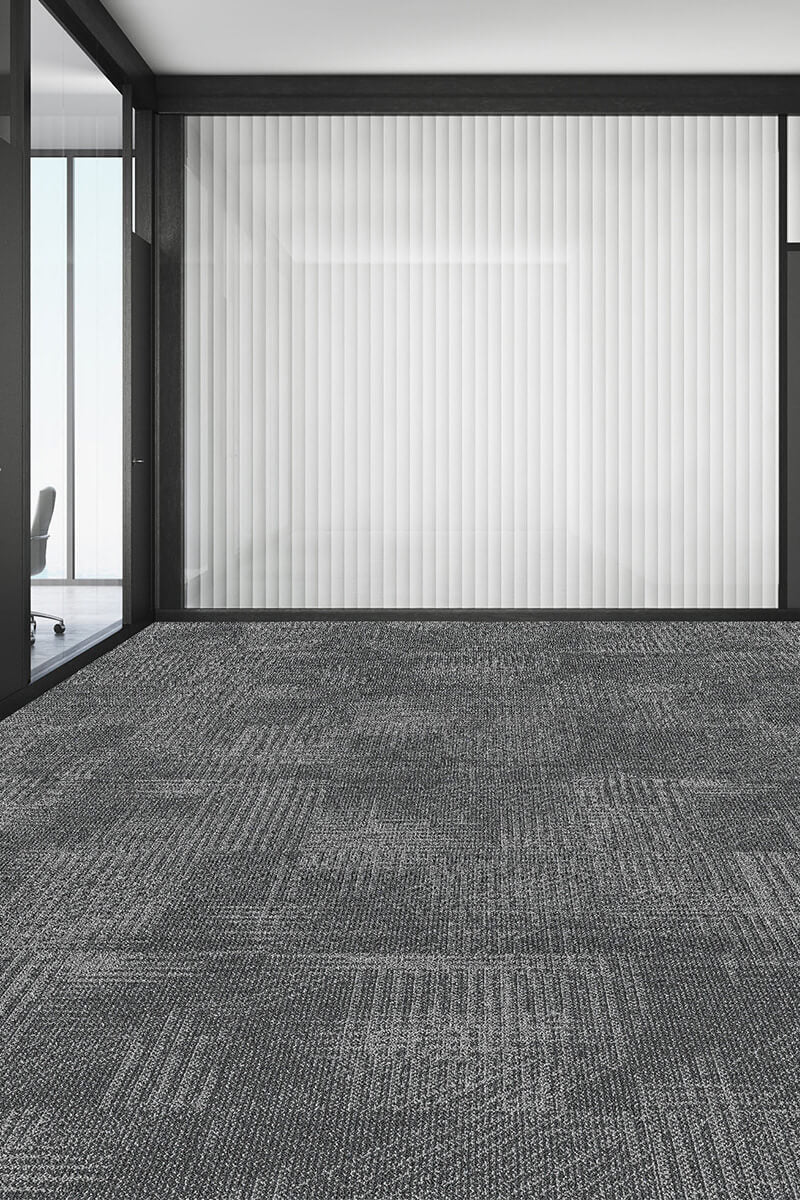

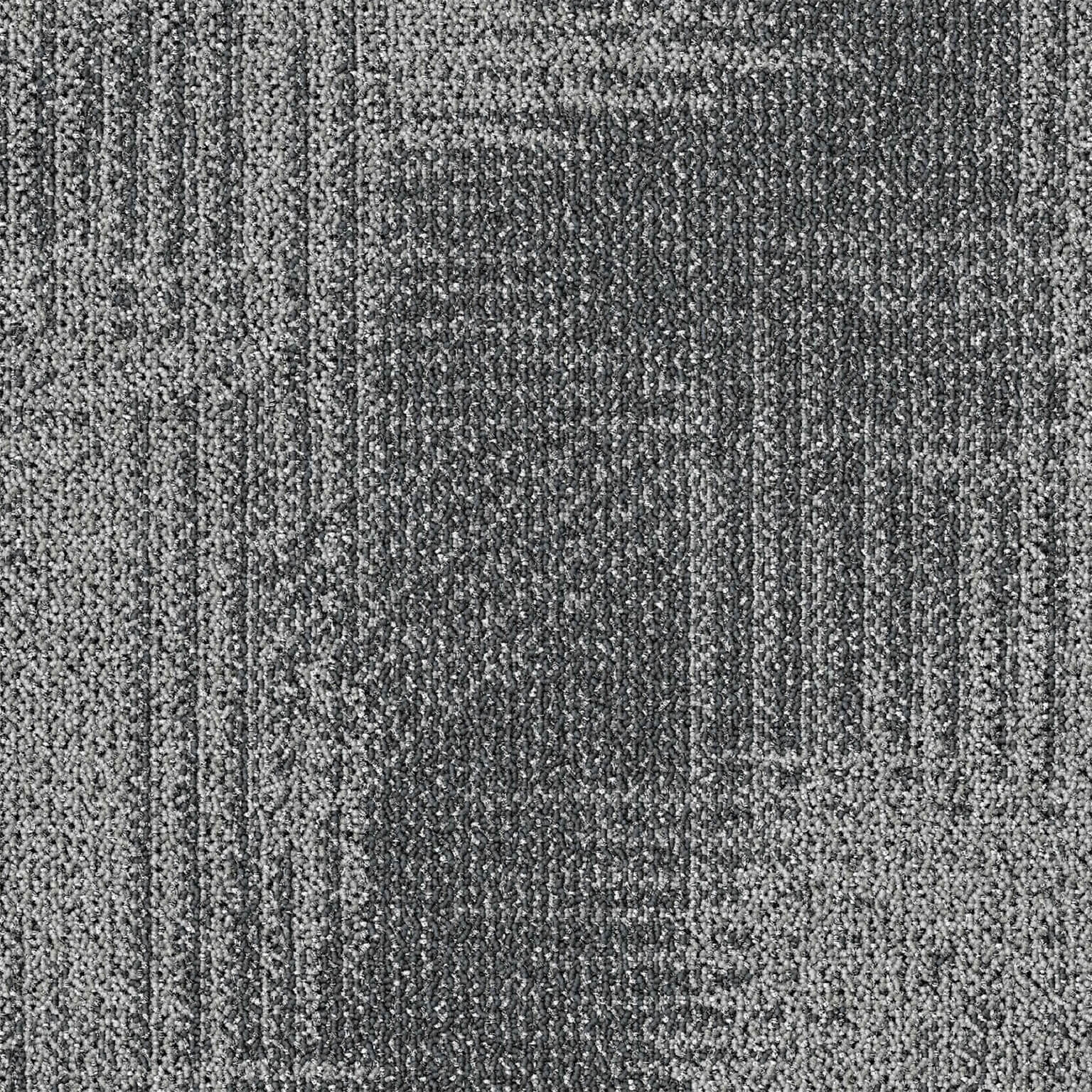

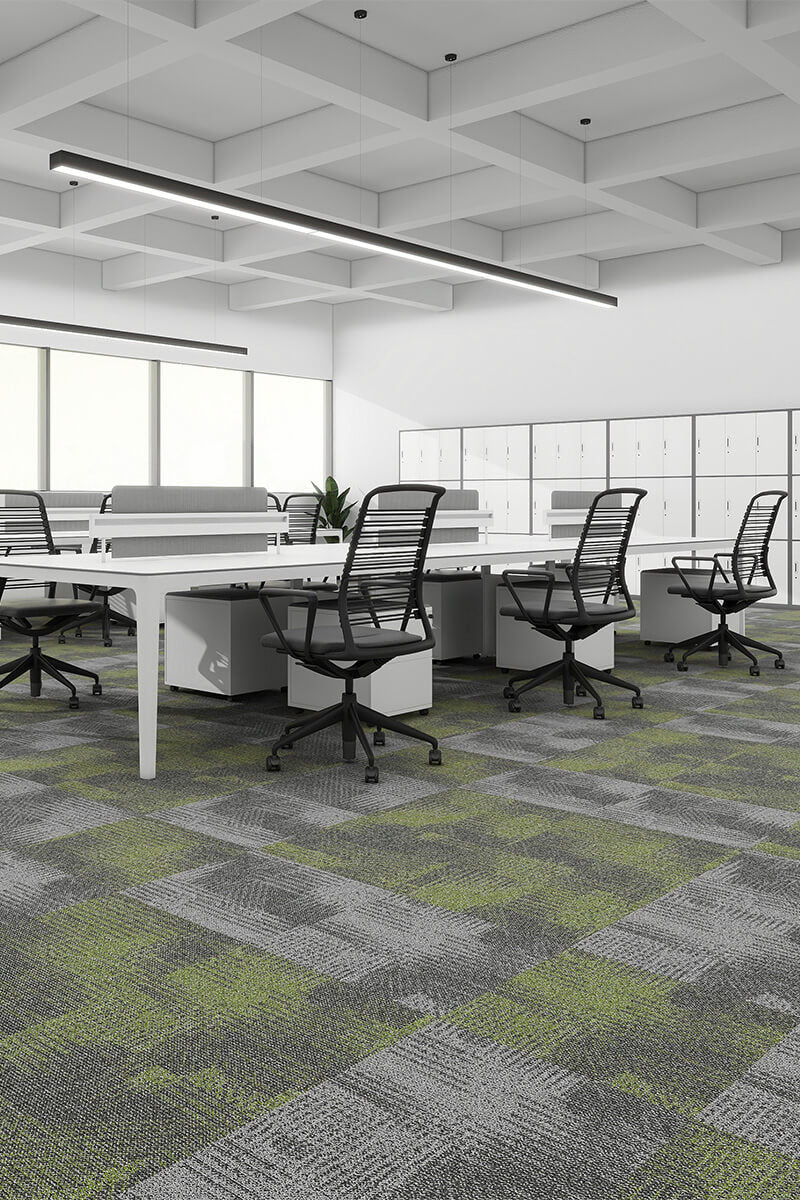

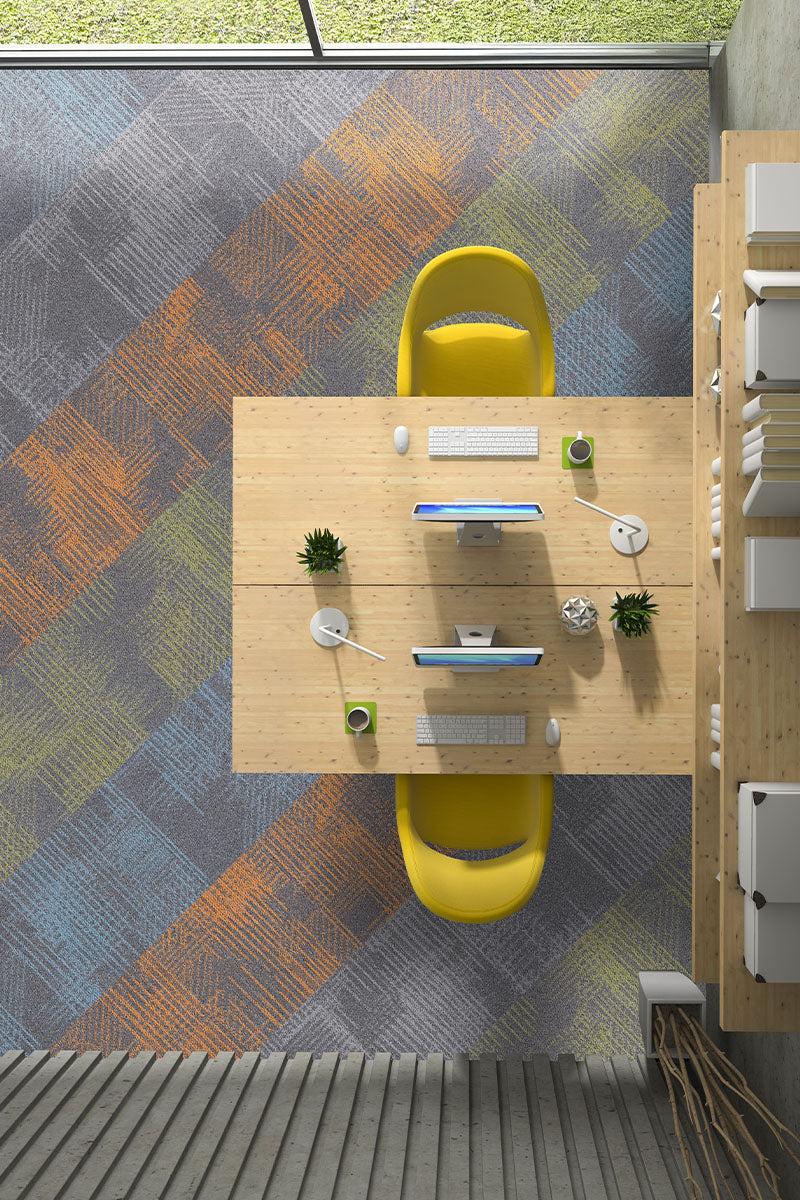

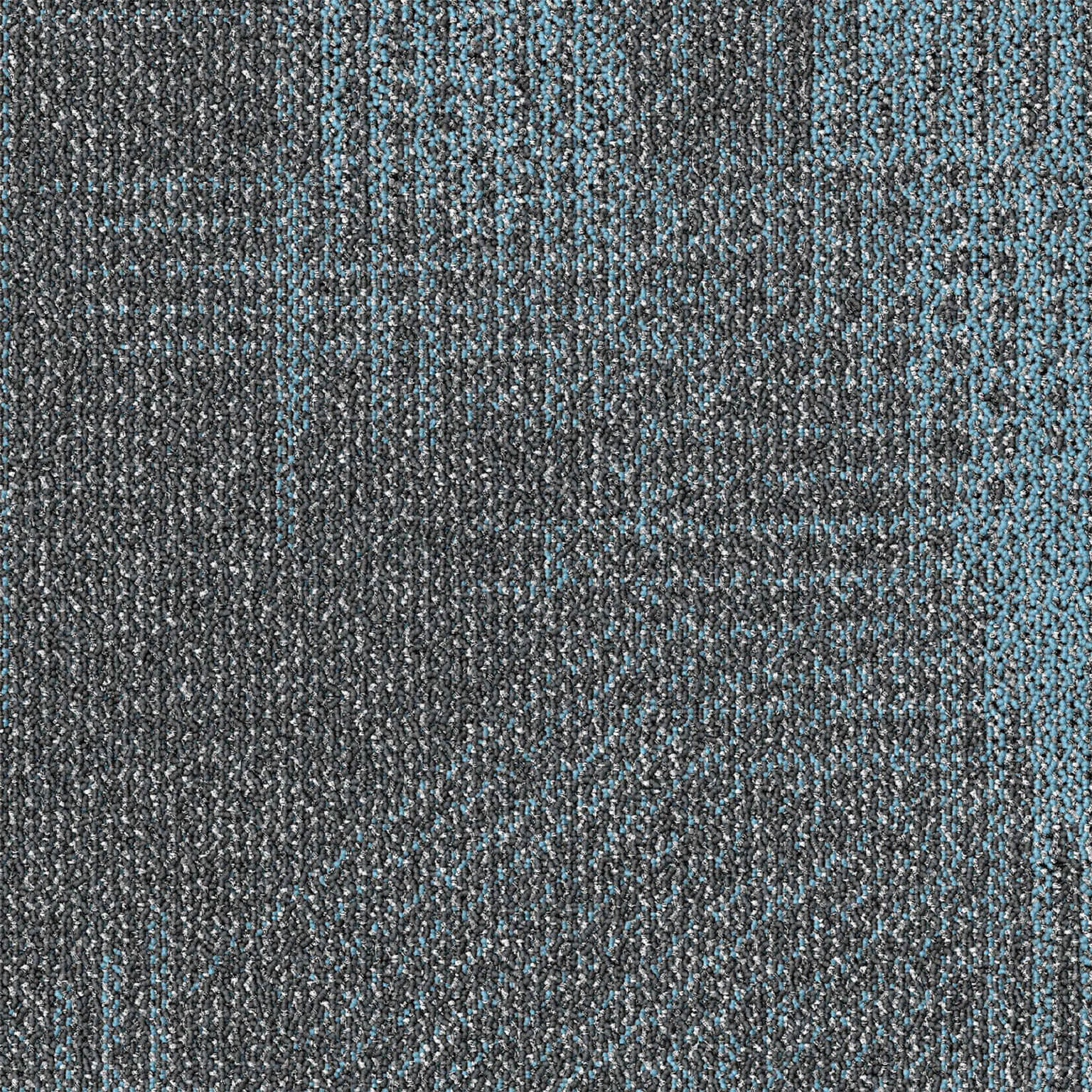

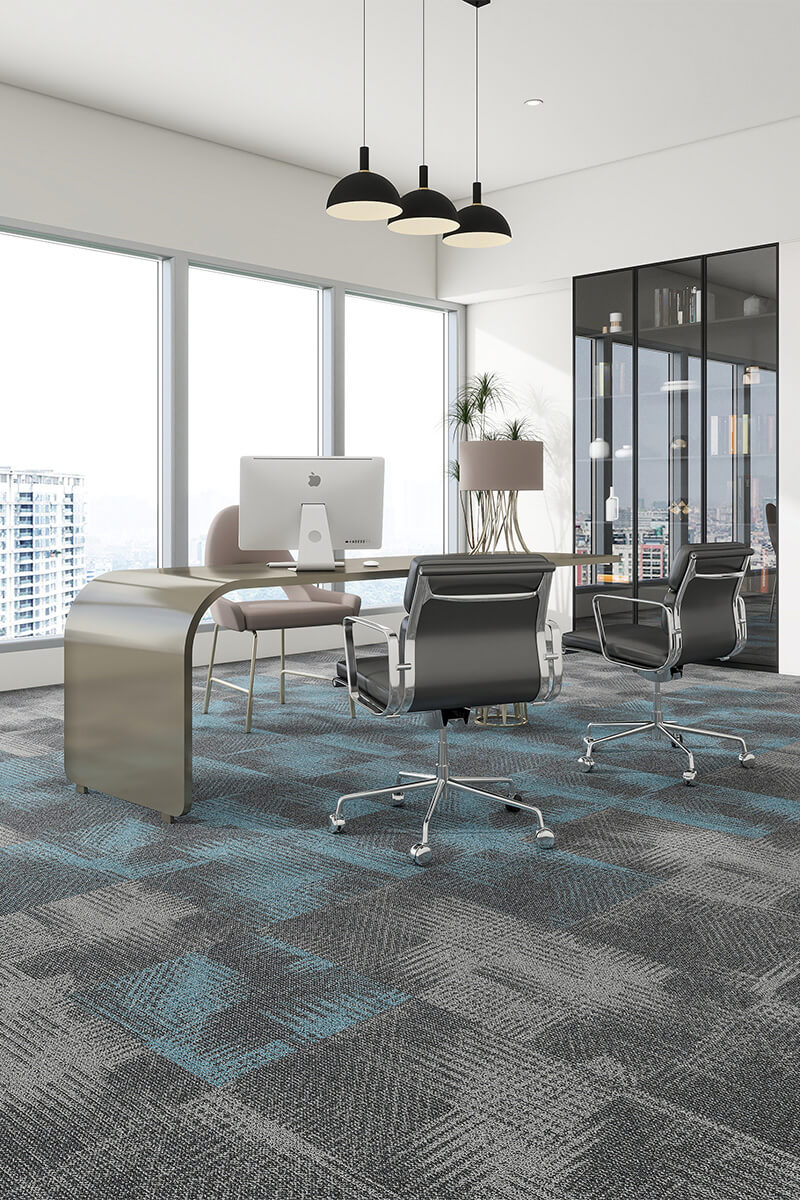

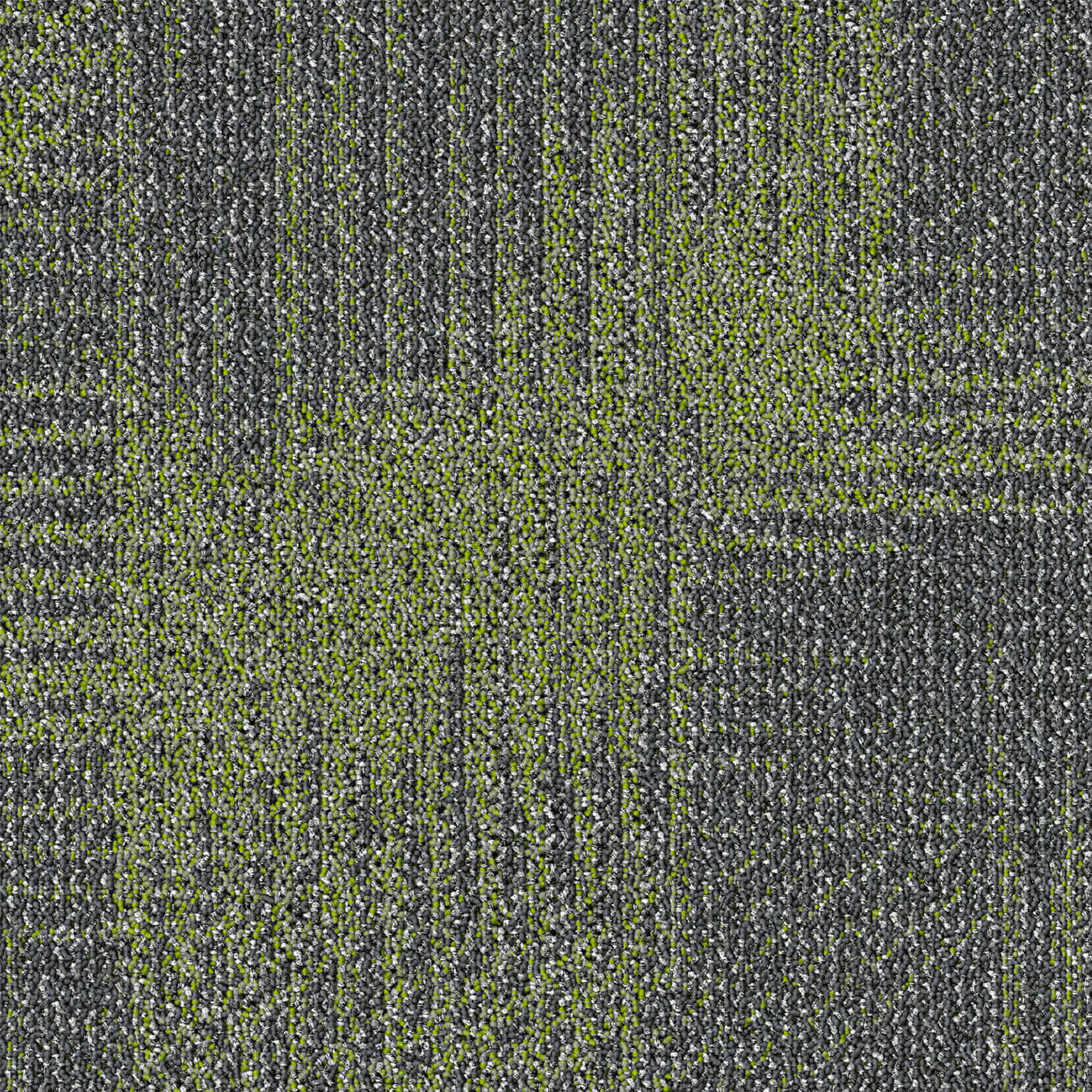

Top Draw—the perfect blend of elegance and practicality for high-traffic commercial environments. Crafted from 100% solution-dyed nylon, these tiles feature a sophisticated multi-level loop pattern, designed to complement any space with understated elegance. Available in a range of versatile colours, including Silver Streak, Verda Doodle, Amber Sketch, and Azure Diagram, Top Draw brings a modern, polished look to your floors. Engineered for durability, it’s built to handle heavy foot traffic while maintaining its resilience over time. Transform your commercial space with the enduring style and superior quality of Top Draw, ensuring it stands the test of time.
SpecificationsConstruction: 1/10’’ Multi-Level Loop Pattern Yarn Composition: 100% Solution Dyed Nylon Tufted Pile Weight: ca. 610 g/m² (18 oz/yd²) (+/- 10%) Total Weight: ca. 3,400 g/m² (100 oz/yd²) (+/- 10%) Pile Height: ca. 4 mm (+/- 0.5 mm) Total Height: ca. 6.5 mm (+/- 0.5 mm) Density (APYD): 6,480 ozs/yd³ Tuft Density: 110,000 stitches/m² Stitch Rate: 43.3 per 10 cm Backing: EcoAce Polyolefin Backing Tile Size: 50 cm x 50 cm Packing: 20 pcs per box (5 m²) |
PerformanceStain Resistance: 9 (AATCC-175-2003) Static Control: Pass - Max. 4 kV (AATCC 134-1996) Tuft Bind: Pass - 6.8 lbs (ASTM-D-1335) Dimensional Stability: Pass - Max. 0.2% change (AACHEN) Indoor Air Quality (V.O.C.): Pass - No VOC Detected (ASTM-D5116-10) Impact Sound Insulation: ΔLw: 28 dB (ISO 10140) Sound Absorption: αw = 0.25 (H) (ISO 354) Hz: 125, 250, 500, 1000, 2000, 4000 αs: 0.00, 0.05, 0.30, 0.20, 0.20, 0.25 Flammability: - Radiant Panel: Pass - Class I (ASTM-E-648-19a) - Pill Test: Pass - 8 (ASTM-D-2859-96) Colourfastness: - To Light: Excellent - 5 (AATCC-16E) - To Wet & Dry Crocking: Excellent - 5 (AATCC-165) - To Ozone: 3 (AATCC-129) |
|
