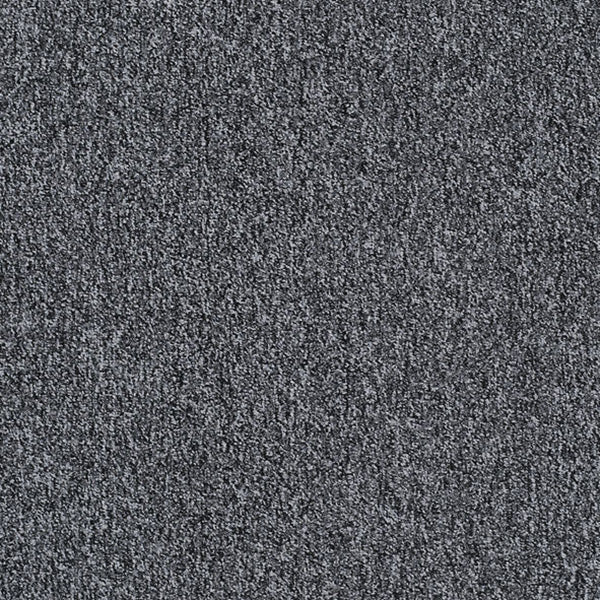

1802 Deeper Grey
1803 Almost Black

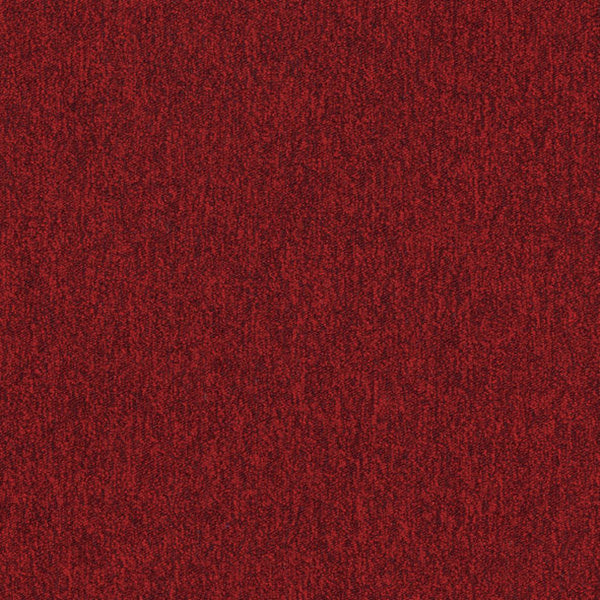

1804 Blush Red

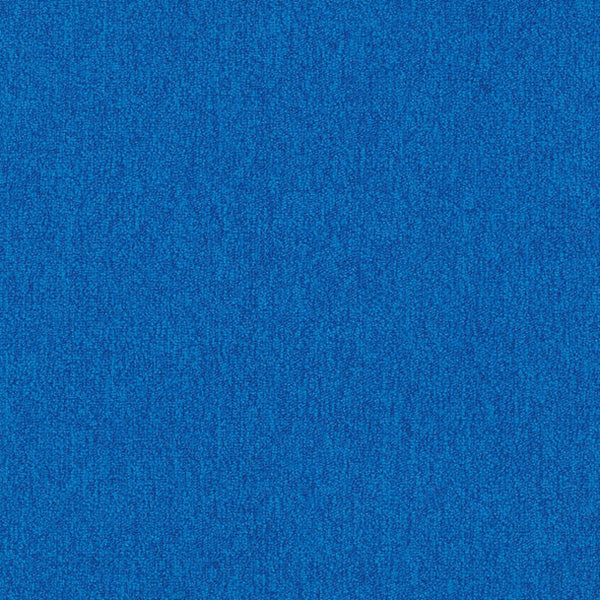

1805 Cobalt Blue

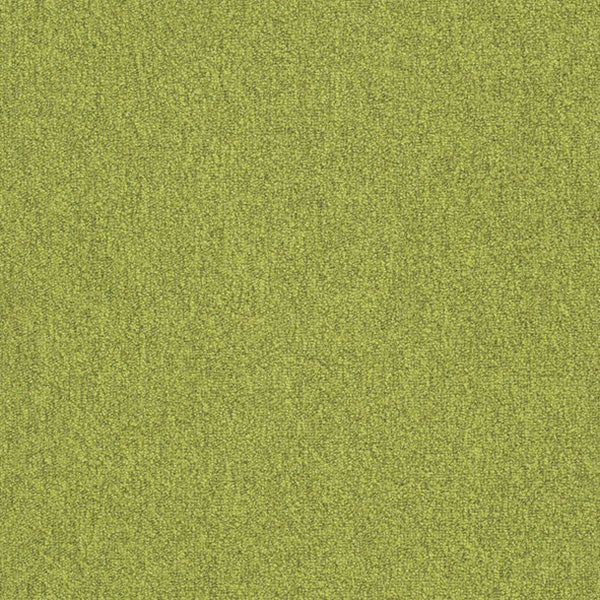

1806 Laser Green

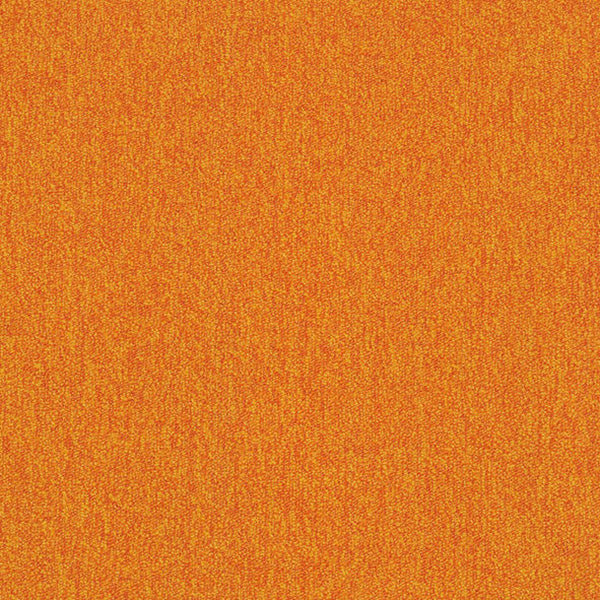

1807 Secret Orange

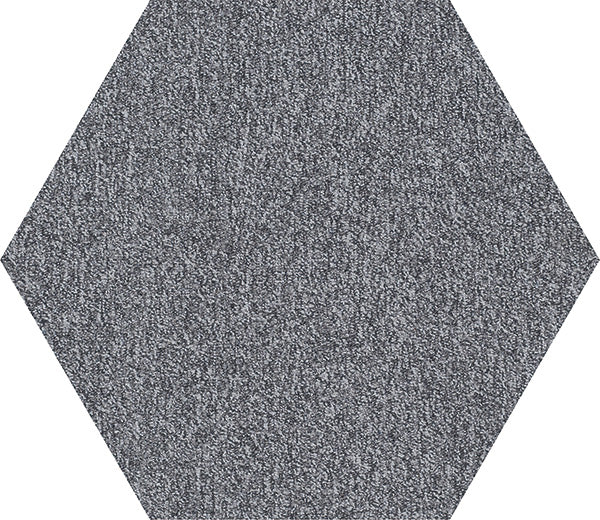

2801 Funnel Grey

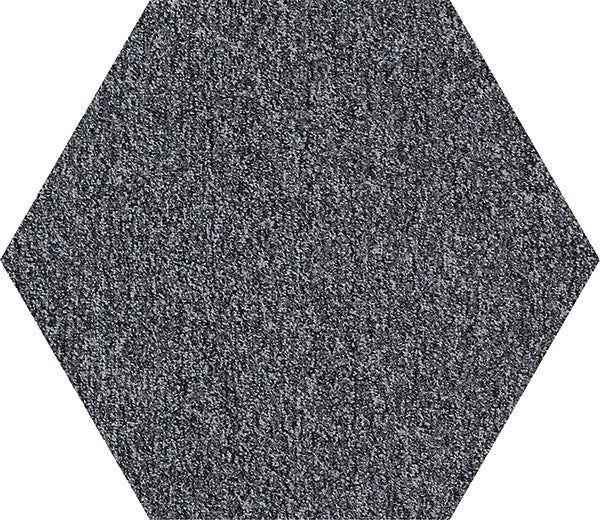

2802 Deeper Grey
2803 Almost Black
2804 Blush Red

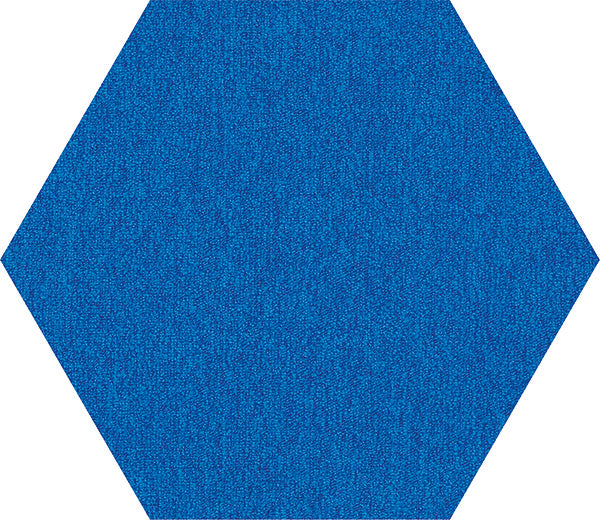

2805 Cobalt Blue

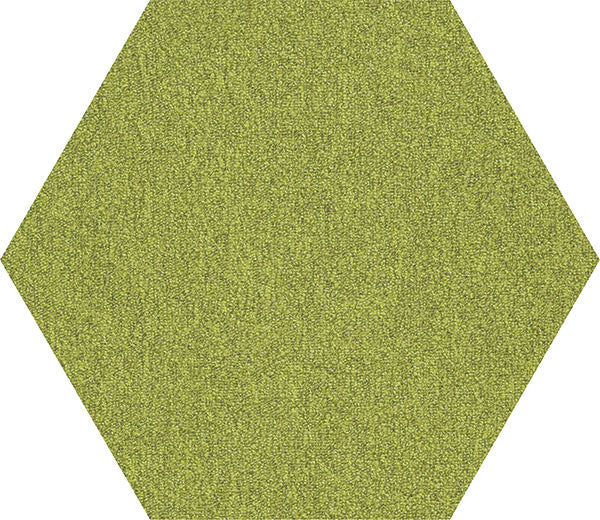

2806 Laser Green

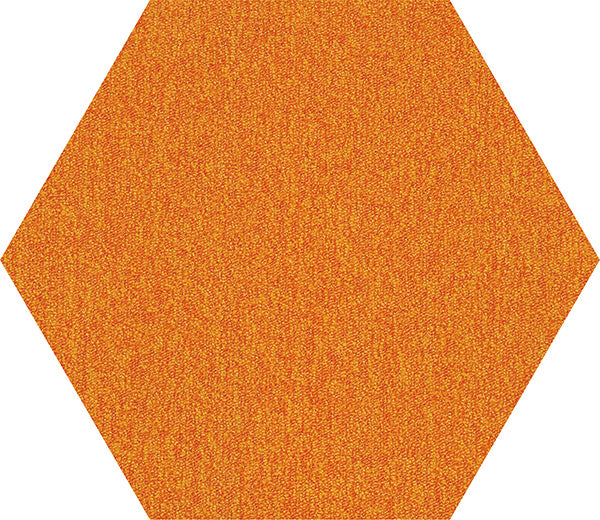

2807 Secret Orange

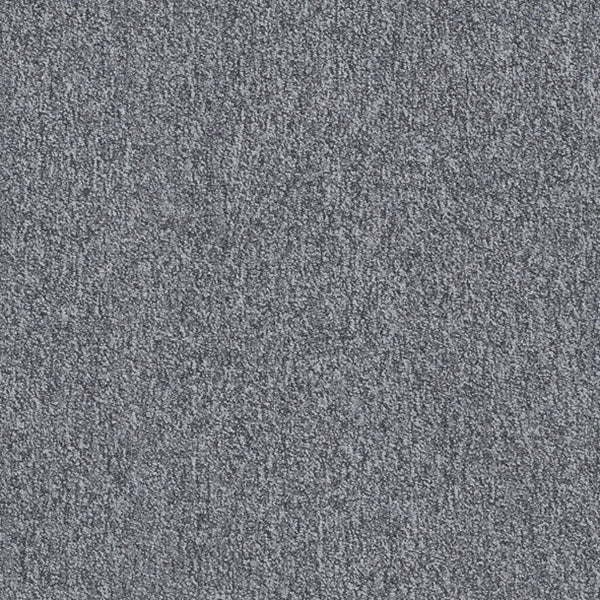

Color: 1801 Funnel Grey

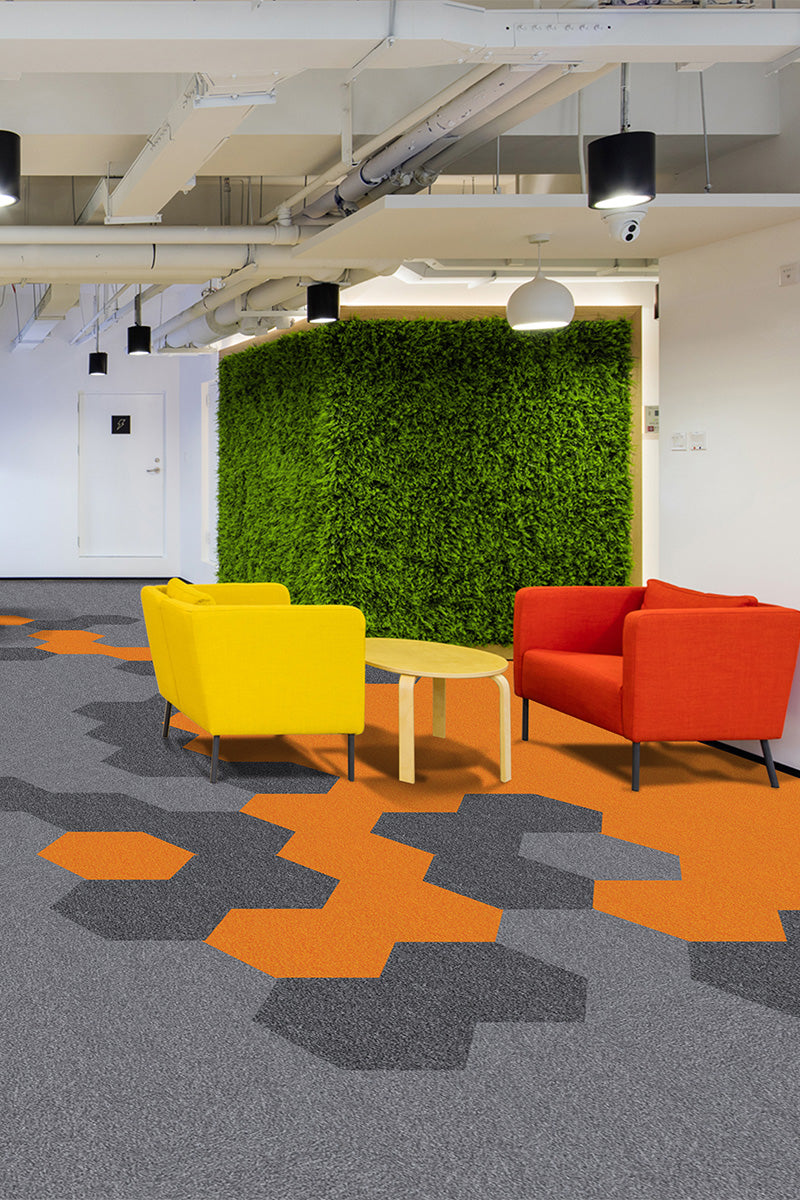

Transform Floors with the Unique T-Hex Design.

*100% Solution Dyed Nylon TILES | Multi-Level Loop
*Sizes: 50cm x 50cm (Square) | 50cm x 43.3cm (Hexagon)
*Usage: Ideal for Heavy Contract Use

*Product images on the website will vary in colour due to many factors such as monitor type, scan quality, lighting arrangements, etc. Images do not seek to duplicate the exact visual appearance but serve merely as a guide or point of reference. Actual carpet samples should be inspected at your nearest Heritage Carpets outlet to confirm texture and colour before making a purchase decision.

Colours: 1801 Funnel Grey | 1802 Deeper Grey | 1803 Almost Black | 1804 Blush Red | 1805 Cobalt Blue | 1806 Laser Green | 1807 Secret Orange | 2801 Funnel Grey | 2802 Deeper Grey | 2803 Almost Black | 2804 Blush Red | 2805 Cobalt Blue | 2806 Laser Green | 2807 Secret Orange

Specification

Specifications



Construction: 1/12” Multi-Level Loop
Yarn Composition: 100 % Solution Dyed Nylon
Tufted Pile Weight: ca. 678 g/m² (20 oz/yd²) (+/- 15 %)
Total Weight: ca. 3,670 g/m² (200 oz/yd²) (+/- 15 %)
Pile Height: ca. 4 mm (+/- 0.5 mm)
Total Height: ca. 7 mm (+/- 0.5 mm)
Density (APYD): 4,571 ozs/yd³
Tuft Density: 118,872 stitches/m²
Stitch Rate: 39 per 10 cm
Backing: Eco Cushion Backing
Tile Size - Square: 50 cm x 50 cm
Tile Size - Hexagon: 50 cm x 43.3 cm
Packing (Square): 20 pcs per box (5 m²)
Packing (Hexagon): 20 pcs per box (3.24 m²)

Performance



Static Control: Pass - Max. 4 kV (AATCC 134-2011)
Tuft Bind: Pass - 10.2 lbs (ASTM-D-1335)
Dimensional Stability: Pass - Max. 2% change (AACHEN)
Indoor Air Quality (V.O.C.): Pass - No VOC Detected (ASTM-D5116-10)
Impact Sound Insulation: ΔLw: 24 dB (ISO 10140)
Sound Absorption: αw = 0.15 (H) (ISO 354)
Hz 125 250 500 1000 2000 4000
αs 0.00 0.00 0.05 0.25 0.25 0.35
Flammability:
- Radiant Panel: Pass - Class I (ASTM-E-648-15e1)
- Pill Test: Pass - 8 (ASTM-D-2859-96)
- Smoke Density: Pass - Max. 450 (ASTM-E-662-06)
Colourfastness:
- To Light: Excellent - 5 (AATCC-16E)
- To Wet & Dry Crocking: Excellent - 5 (AATCC-165)
- To Ozone: Excellent - 5 (AATCC-129)

Warranty



15 Year Carpet Wear Warranty
Lifetime Anti-shock Carpet Warranty
Ideal for Medium Contract Use.
The subfloor should be dry, smooth, flat, dust-free, and resistant to compression and load-bearing. Visible seams are an inherent characteristic of carpet tiles and should be expected. Due to dye lot variations, the actual color may differ slightly from the samples. To prevent premature wear, the use of chair pads is recommended.
Environment:
The design and production of THex Tile adhere to the ISO 14001:2004 Environmental Management System and comply with all environmental regulations.
As a responsible manufacturer, we strive to minimize our carbon footprint. A majority of our excess production materials are recycled in-house, resulting in at least 10% recycled content in our tile backing. Additionally, THex Tile is free from PVC in both its materials and packaging.
THex Tile is an environmentally friendly “green” carpet.
