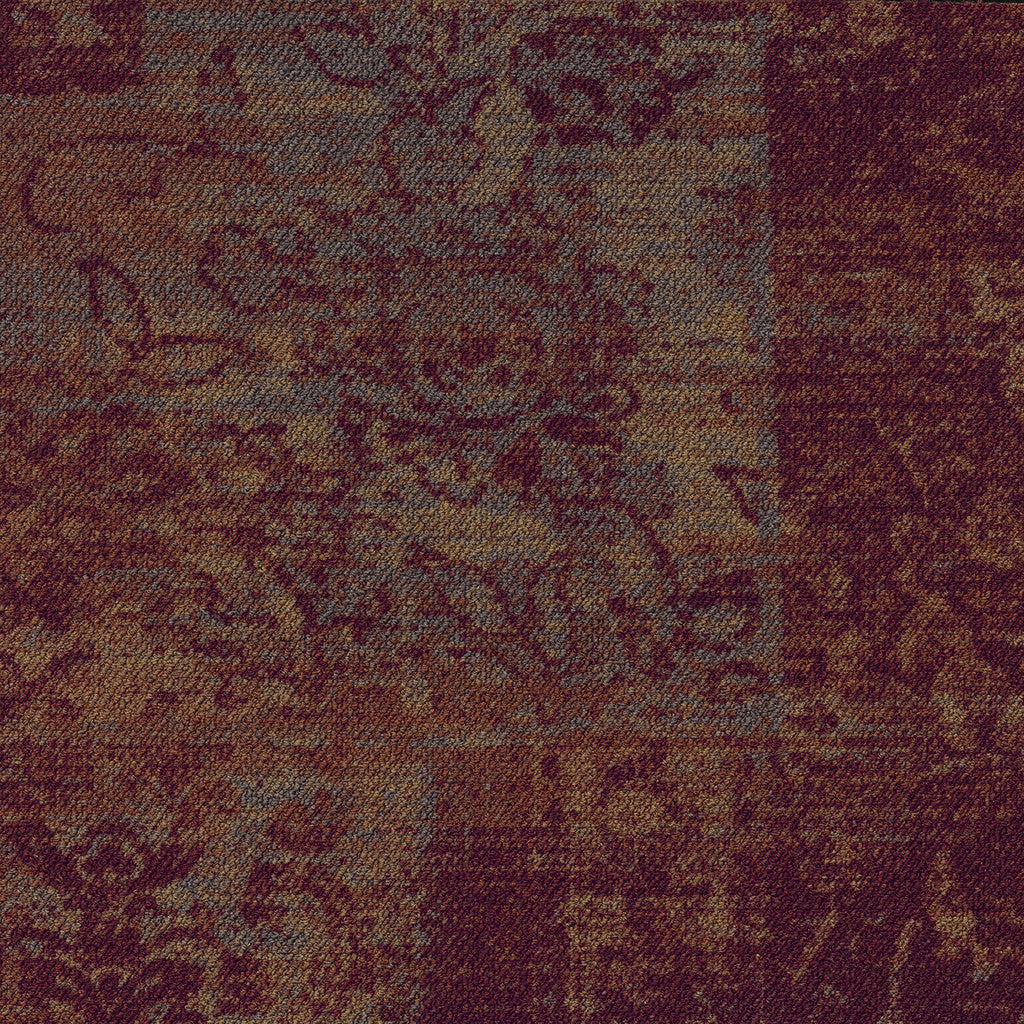

Patchwork 351 Orient
Patchwork 592 Indigo Blue

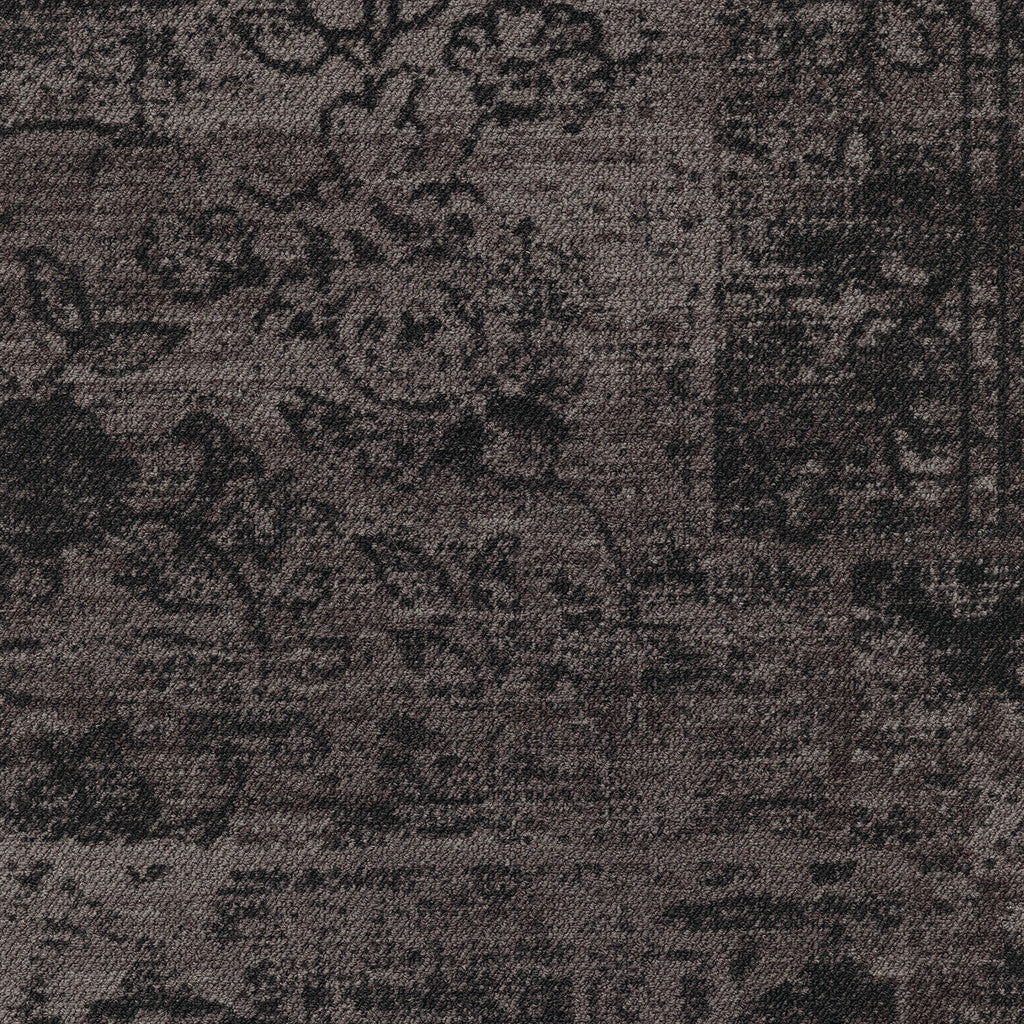

Patchwork 830 Maroon

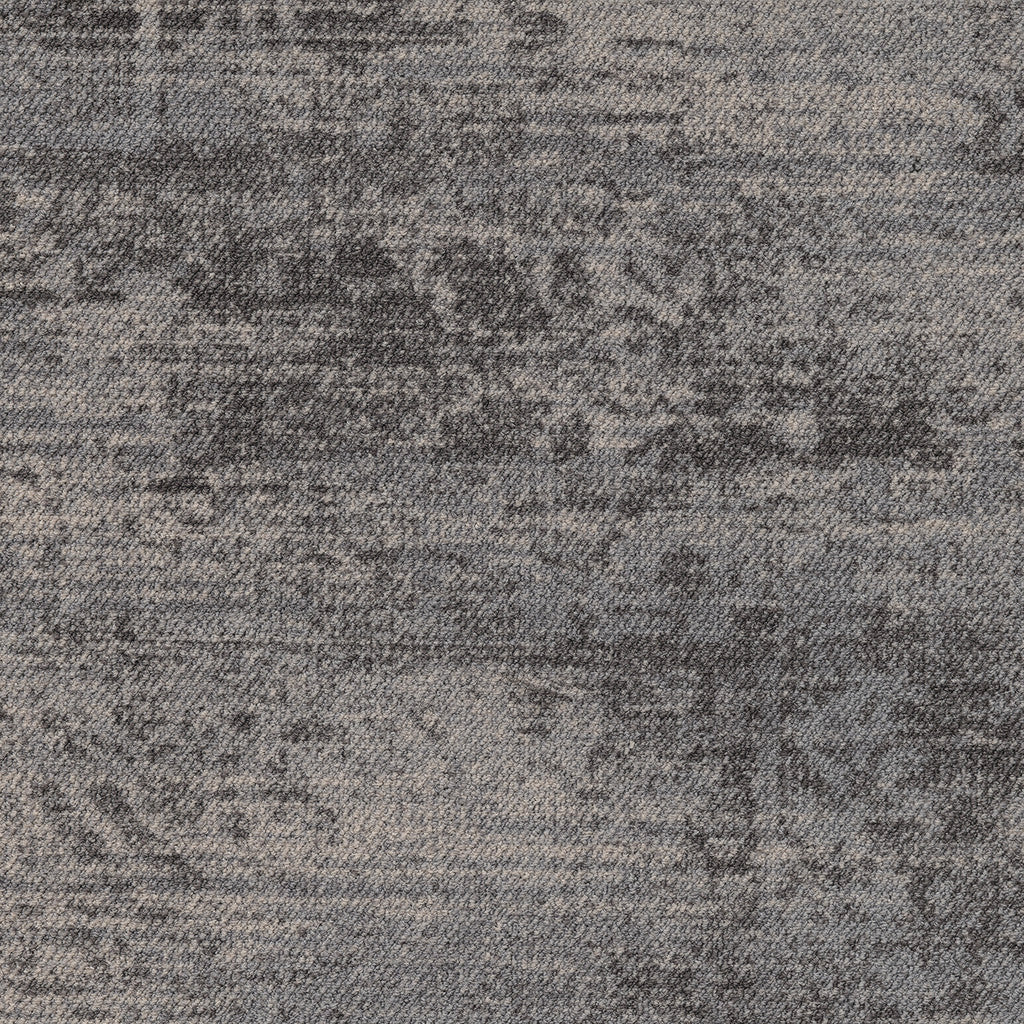

Patchwork 957 Mid Grey

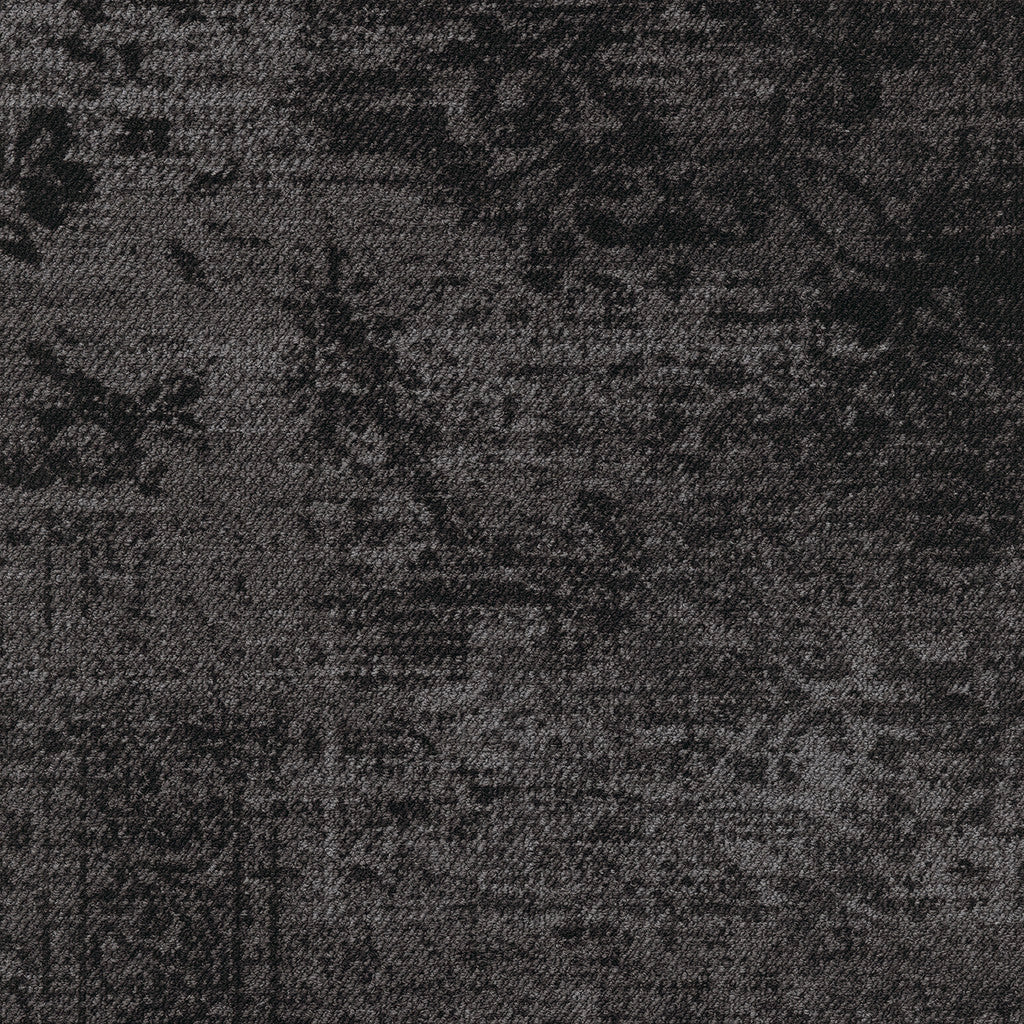

Patchwork 965 Anthracite
Pixel 592 Ceramic Blue
Pixel 351 Orient
Pixel 830 Maroon
Pixel 957 Mid Grey
Pixel 965 Anthracite
Color: Patchwork 351 Orient

100% NYLON 6 IMPREL TILES | Tufted Loop | Made In Belgium

Sizes: 50cm x 50cm
Colours: Patchwork-35-Orient | Patchwork 592 Indigo Blue | Patchwork-830-Maroon | Patchwork-957-Mid Grey | Patchwork-965-Anthracite | Pixel-351-Orient | Pixel 592 Ceramic Blue | Pixel-830-Maroon | Pixel-957-Mid Grey | Pixel-965-Anthracite
Usage: Ideal for Heavy Contract Use

The design and production of Vintage Collection Tile conforms to the ISO 14001:2004 Environmental Management System and complies with environmental regulations. As a responsible manufacturer and to minimize our carbon footprint, a majority of our excess production materials are recycled in-house resulting in a minimum of 10% recycled content in our tile backing. Vintage CollectionTile does not contain any PVC in its manufactured materials and packaging. Vintage Collection Tile is an environmentally friendly “green” carpet.
*Product images on the website will vary in colour due to many factors such as monitor type, scan quality, lighting arrangements etc. Images do not seek to duplicate the exact visual appearance, but serve merely as a guide or point of reference. Actual carpet samples should be inspected at your nearest Heritage Carpets outlet to confirm texture and colour before making a purchase decision.

Usually Bought Together With

Specification

Specifications



Construction: Tufted 1/10” Loop
Yarn Composition: 100% NYLON 6 IMPREL
Secondary Backing: Back2Back: Modified bitumen enhanced with a thermoplastic elastomer, reinforced with a glass fibre fleece covered with 100% PES fleece. 10% recycled content included.
Tufted Pile Weight: ca. 605 g/m² (17,8 oz./yd²) (+/- 10%)
Total Weight: ca. 4400 g/m² (129,8 oz./yd²) (+/- 10%)
Pile Above Backing: ca. 372 g/m² (+/- 10%)
Pile Height: ca. 3.1 mm (+/- 10%)
Total Height: ca. 6.6 mm (+/- 10%)
Pile Density: ca. 0.120 g/cm³
Tuft Density: ca. 218,000 /m²
Tile Size: 50 cm x 50 cm
Packing: 20 pcs per box (5 m²)

Performance



Indoor Air Quality (V.O.C.): Pass - No V.O.C Detected (ASTM-D5116-10)
Fire Resistance: Pass - Class I (ASTM-648), Bfl-s1 (EN 13501-1)
Fastness To Light: ≥ 5-6 (ISO 105-B02)
Rubbing Fastness: ≥ 4 (EN ISO 105-X12)
Colour Fastness To Water: ≥ 4 (EN ISO 105-E01)
Thermal Resistance: 0.063 m² K/W (ISO 8302)
Impact Noise Rating: ΔL: 32 dB (ISO 10140)
Sound Absorption: αw: 0.15 (ISO 354)
Hz 125 250 500 1000 2000 4000
αs 0.00 0.00 0.06 0.15 0.28 0.31
Permanent Anti-static: ≤ 2 kV (ISO 6356)
Transversal Resistance: ≤ 10^9 Ohm (ISO/DIS 10965)
Dimensional Stability: Max. 0.2 % (EN 986)
Castor Chair Suitability: A : continuous use (EN 985)
Classification: 33 - LC1 (EN 1307)
GUT-NR: 3CBEDAF8
BRE: ENP 428
Données Environnementales: Démarche HQE® : cf. FDES suivant NF P01-010 Déclaration du 30/07/2003
LEED®: Product contributes toward satisfying Credits under LEED®. *For more information, see the modulyss sustainable datasheets. - Remark: Products are not reviewed under LEED®, LEED® credit requirements cover the performance of materials in aggregate, not the performance of individual products of brands. The LEED® green building certification program is the nationally accepted benchmark for the design, construction, and operation of green buildings. For more information on LEED®, visit www.usgbc.org/contact.
DGNB: modulyss is member of DGNB, the German Sustainable Building Council.

Warranty



15 Year Carpet Wear Warranty
Lifetime Anti-Static Shock Warranty
Ideal for Heavy Contract Use.

The subfloor should be dry, smooth, flat, dust-free and resistant to compression and load-bearing. Where seaming is necessary, a seam sealant must be used for all such installations. Due to dye lot variations, actual color may vary slightly from the samples. Chair pads are recommended to prevent premature wear of carpet.
