Name: Grippers-22mm
Brand: heritagecarpets
SKU: 45286408519904
Price: 76 SGD
Availability: InStock

S$76; S$76
Unit price: per

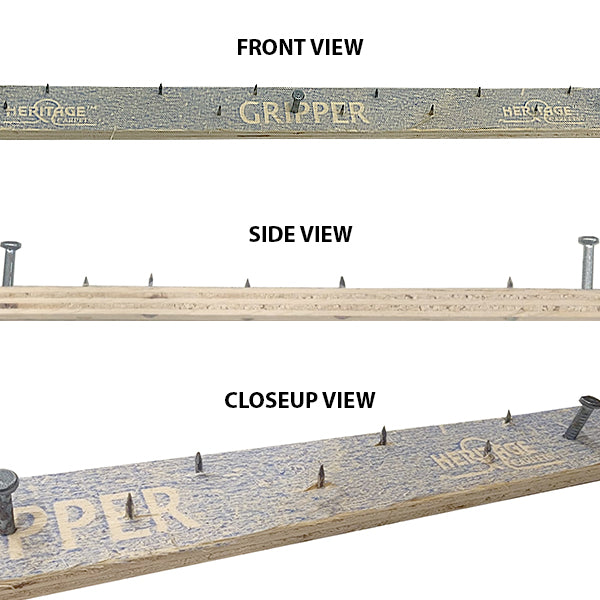

GRIPPER – HERITAGE
1.22m(4′)

Our Heritage Gripper is made from high grade resin bonded plywood, five ply (6mm) thickness, machined on one edge to a defined angle and penetrated on the underside by two rows of pins.

Pins are set at an angle of 60° to eliminate oull out and bending, even when power stretching.
Designed for ease of installation on concrete floors.
Pre-nailed with masonry nails. 20mm (3/4″) long for a firm fixing.
100 PCS per Box

Specification

Heritage Carpet Gripper - 22m - Specifications
Veneer	5 ply poplar wood
Width	22 mm (+/-0.5 mm)
Length	1220 mm (+/- 2 mm)
Thickness	6.3 mm (+/- 0.3 mm)
Type & Packing	1.22 m (4'') x 100 pcs = 122 m (400'') per box
Strip Count	100 strips per carton
Concrete Floor Nail Count	9 nails
Nail Count	49 - 52 pins per strip with 4 - 5 mm (+/-1 mm) length of pins above the plywood
Angle of Stuff and Nail	60 degrees
Country of Origin	China
All nails should be galvanised (anti-rust), and must be secure (not fall out in transit).
