CLICK VINYL PLANKS | Heritage Click Lock | UV Matt Coating | Stone Visual
Sizes: 600mm x 300mm x 4.2mm

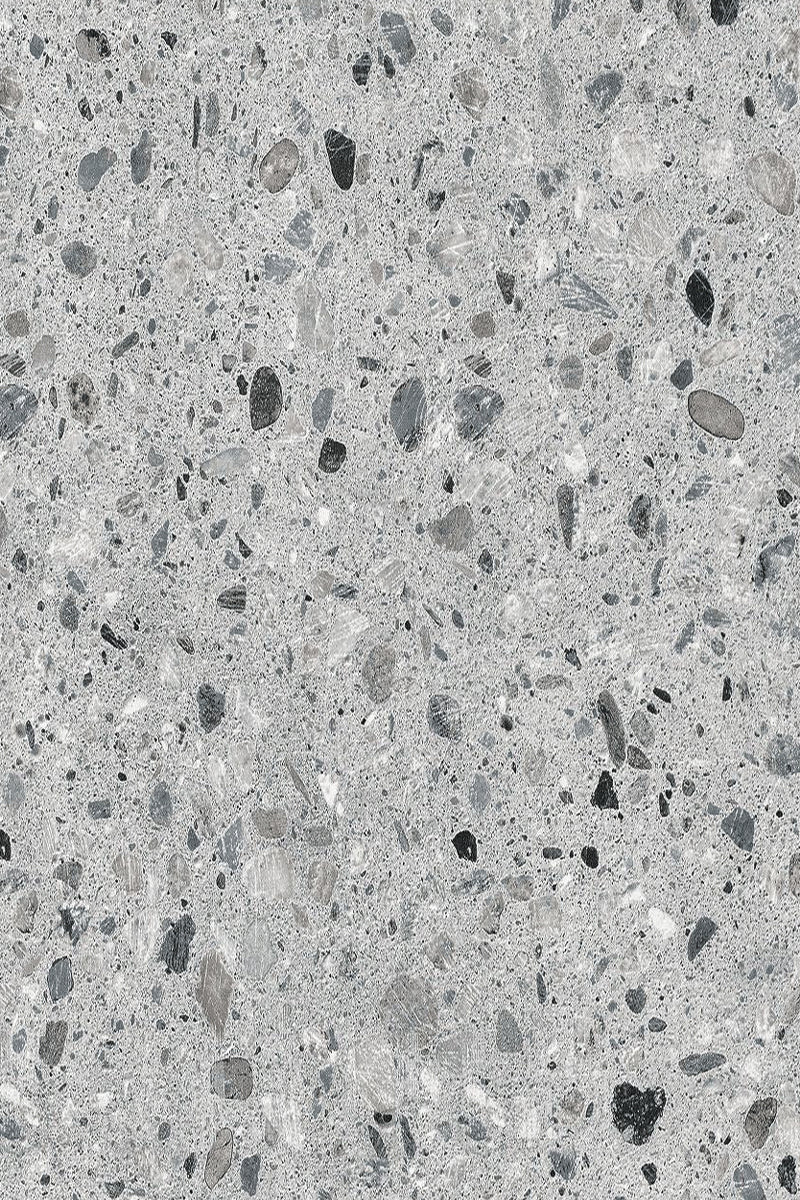

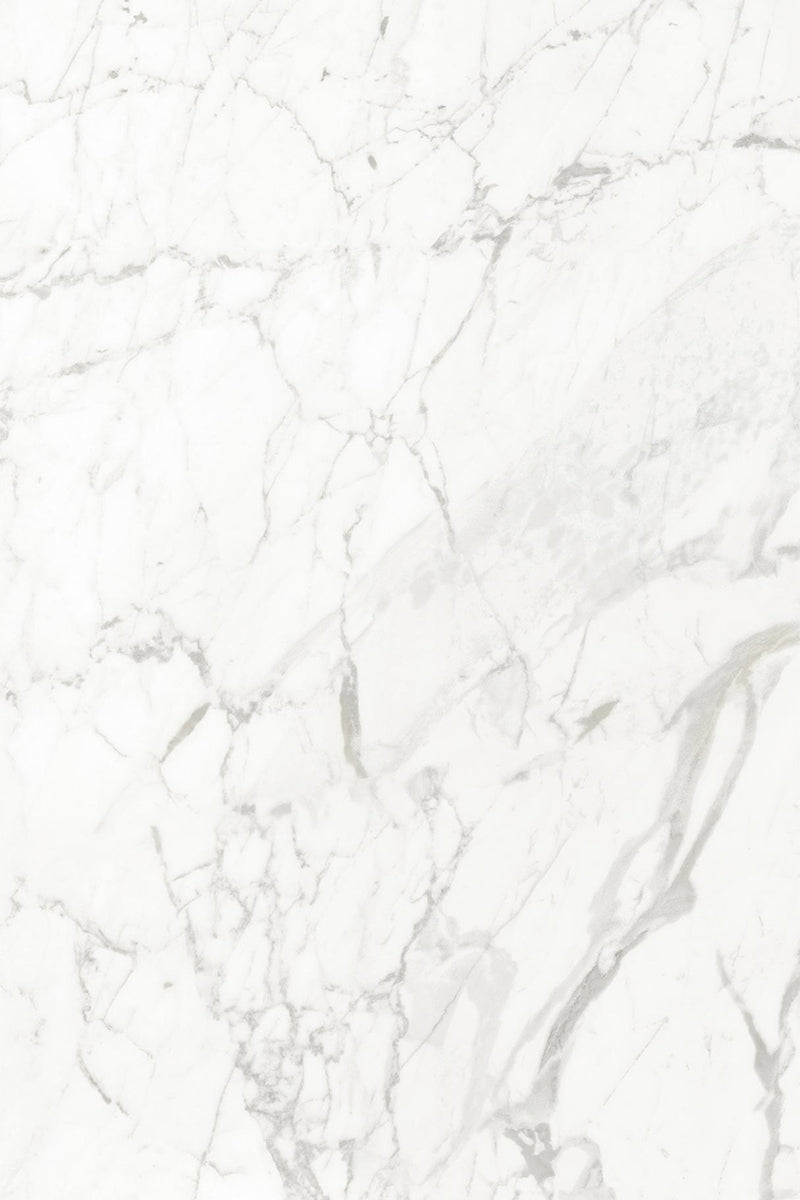

Colours: 0330 Stormy Grey | 1204 Lyric Grey | 2015 Marble Statue | 6143 Classy Grey | 8000 Moonstone Grey
Usage: Residential, commercial, hospital, schools, kids nursery rooms, etc.
HERITAGE Click Vinyl Flooring series offers a durable wood-like finish with natural textures and realistic details. For a beautiful and versatile floor, choose HERITAGE Click Vinyl Flooring for your home or small business. Go where your inspiration takes you. All pictures shown are for illustration purpose only. Actual product colour may vary due to product enhancement.
Specifications | |
---|---|
Dimension (L x W x T) | 600 mm x 300 mm x 4.2 mm (24” x 12” x 1/6”) |
Surface Material | Virgin PVC |
Texture | Stone Visual |
Protective Wear Layer Thickness | 0.5 mm |
Gloss Level | 10 (+/- 2) |
Surface Finish | UV Matt Coating |
Locking System | Heritage Click Lock |
Edge Finish | Straight Edge |
Packing per carton | 12 pieces (2.16 m²) |
Carton dimensions | 615 mm x 312 mm x 52.4 mm |
Weight per piece | 1.51 kg |
Weight per sqm | 8.38 kg |
Weight per carton | 18.12 kg |
Performance | ||
---|---|---|
CHARACTERISTIC | RESULT | EN / ASTM Norms |
PRODUCT STABILITY | ||
Dimension | ||
- Squareness | Pass: 0.18 mm | EN 427:1994 / ASTM F 2055 |
- Straightness | Pass: 0.07 mm | EN 427:1994 / ASTM F 2055 |
- Overall Stability | Pass: 0.1% | ISO 23999:2008 / EN 434:1994 / ASTM F 2199 |
Curling after Exposure to Heat | Pass: 0.06 mm | ISO 23999:2008 / EN 434:1994 / ASTM F 2199 |
Residual Indentation after Static Loading |
Pass: 0.06 mm | ISO 24343-1:2007 / EN 433:1994 / ASTM F 970 |
Plank Flexibility | Pass | EN 435:1994 Method A / ASTM F 2199 |
PRODUCT DURABILITY | ||
Resistance | ||
- Wear | Fv: 1.8 mm³. Wear Group: T> 1000 cycles |
ISO 24388-A / EN 660-2:1999+A1:2003 / EN 649:2011 |
- Abrasion | 3000 cycles: Class: AC3 | EN 13329:2006 / A1:2008 |
- Impact | Pass | ASTM F 1265 |
- Castor Chairs | No visible damage after 25000 cycles / under 90 kg |
ISO 4918 / EN 425:2002 |
- Peeling | X direction: 5.5N / 50 mm Y direction: 5.5N / 50 mm |
EN 433:1994 |
- Chemicals and Stains | Pass | ISO 26987 / EN 423:2001 / ASTM F 925:2002 |
- Artificial Light (Colorfastness) | Pass: ≥ Grade 6 | EN 20105:B02 Method A / ASTM F 1515 |
- Thermal | Pass 0.07 W/m-K |
EN 12664:2001 EN 12524:2000 |
- Water | Yes (Suitable for indoor wet areas) | |
Suitability for Underfloor Heating | Suitable(max. 27˚C) | |
PRODUCT SAFETY | ||
Fire Test | ||
- Flame Spread | Pass: Bf1-S1 Pass: Class I |
EN 13501-1:2007 +A1:2009(E) ASTM E648-06 |
- Smoke Evolution (Smoke Density) | Pass: ≤ 450 | ASTM E622 |
Resistance | ||
- Electrical | Pass: R₁ > 10¹⁰ Ohm Pass: > 2.0 kV on concrete Pass |
EN 1081:1998 Method C EN 1815:1998 ASTM F150-06 |
- Slipping | Pass: R10 / Class DS Pass: 0.1% |
EN 14041:2004/AC:2006 Clause 4.5 / EN 13893:2002 / DIN 51130 ASTM D2047-93 |
ACOUSTIC PROPERTIES | ||
Impact Sound Insulation | 13dB | ISO 140-8:1997 / ISO 717-2:2013 |
ENVIRONMENTAL IMPACT | ||
Toxicity | ||
- Pthalates (DBP / BBP / DEHP / DINP / DNOP / DIDP) |
Pass | EN 14372:2004 |
- Soluble Heavy Metals | Pass: Heavy Metals and formaldehyde not detected |
EN 71-3:1994 |
Formaldehyde Emission | Pass: Class E1 | EN 14041:2004 |
Hygiene | Does not contribute to infection spreading | |
VOC Regulations / Indoor Air Quality | Pass A+ |
ISO 16000-9:2006 FloorScore® |
