HERITAGE Click Vinyl Flooring series offers durable wood-like finish with natural textures and realistic details. For a beautiful and versatile floor, choose HERITAGE Click Vinyl Flooring for your home or small business. Go where your inspiration takes you.All pictures shown are for illustration purpose only. Actual product colour may vary due to product enhancement.
*Click Vinyl Planks
*Virgin PVC
*Wood Visual
*Sizes: 1220mm x 180mm x 4.2mm
*Usage: Residential, commercial, hospital, schools, kids nursery rooms, etc.
*Product images on the website will vary in colour due to many factors such as monitor type, scan quality, lighting arrangements etc. Images do not seek to duplicate the exact visual appearance, but serve merely as a guide or point of reference. Actual carpet samples should be inspected at your nearest Heritage Carpets outlet to confirm texture and colour before making a purchase decision.

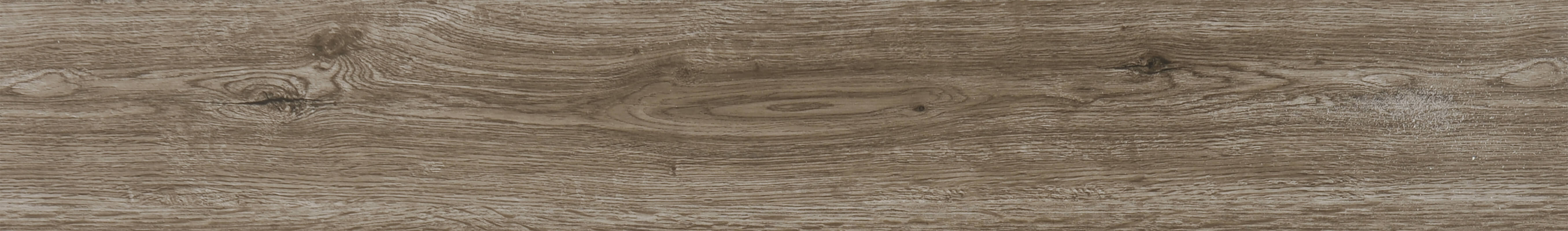

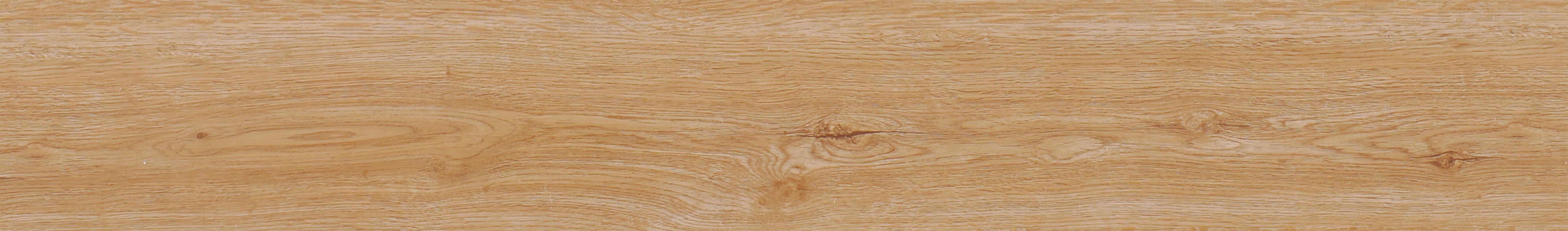

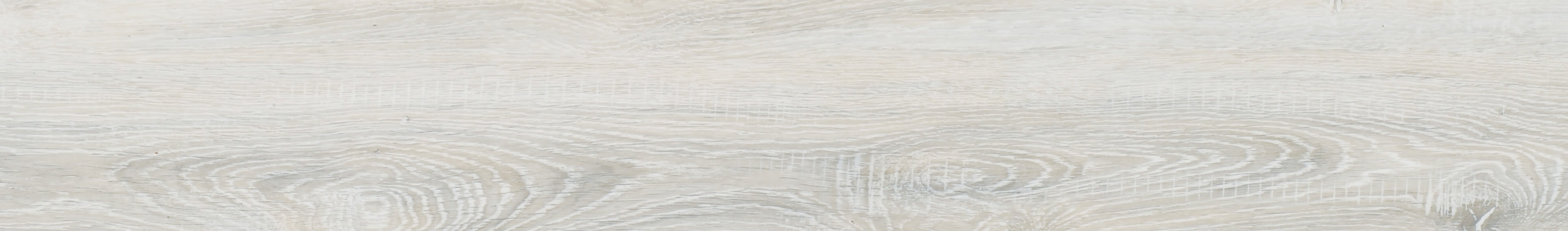

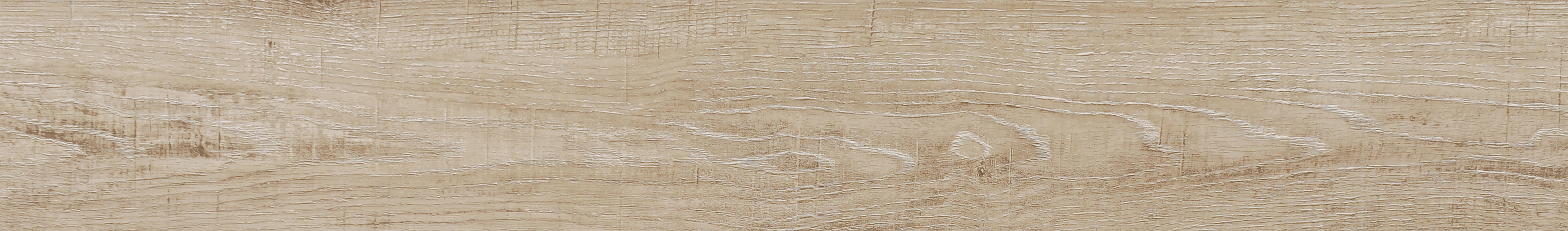

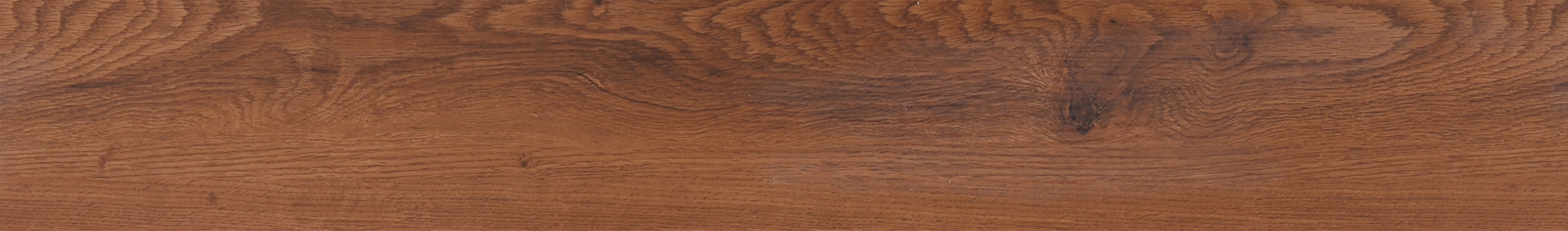

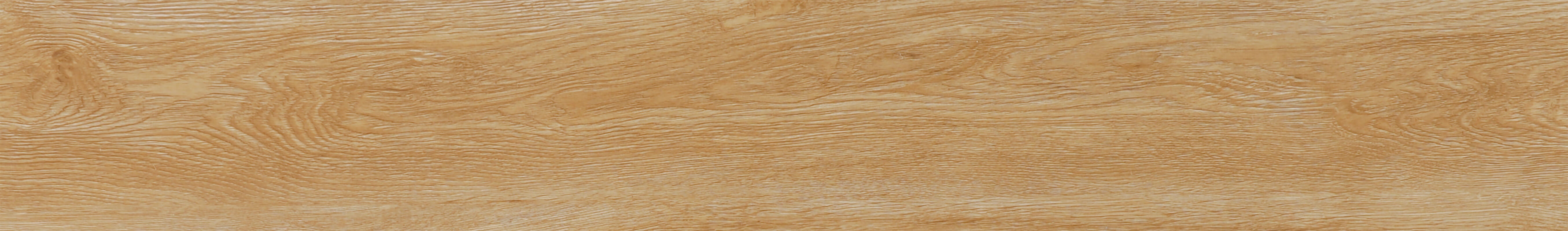

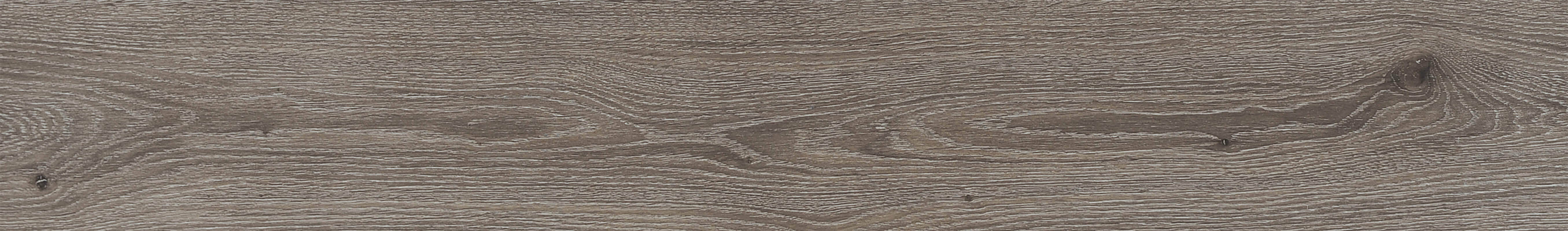

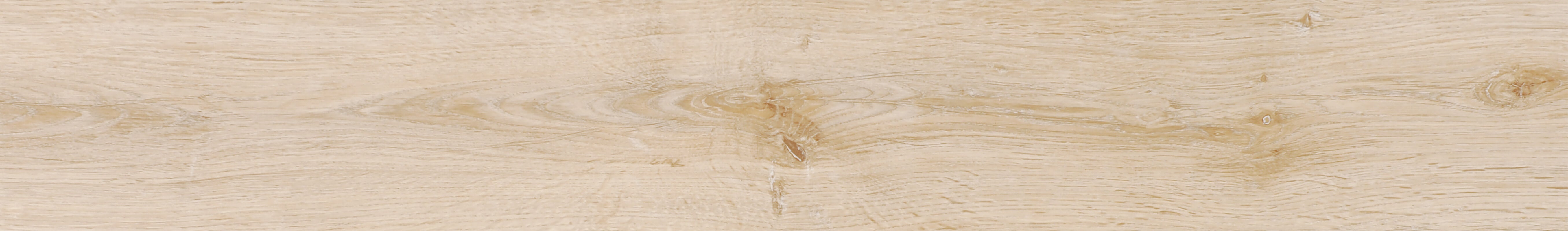

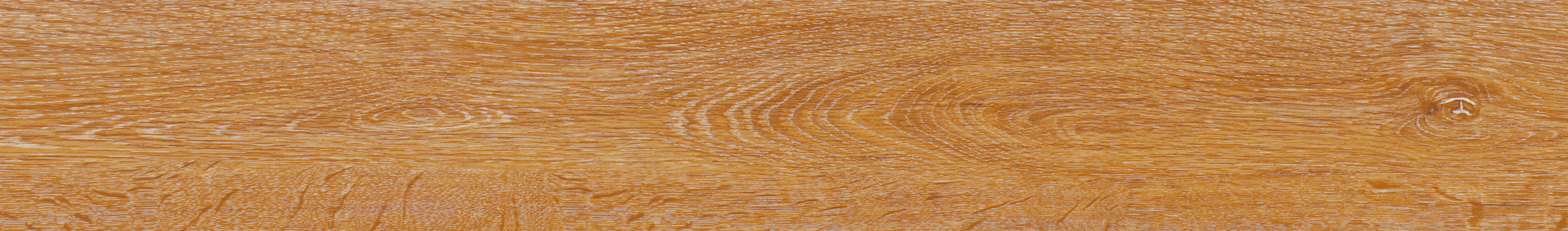

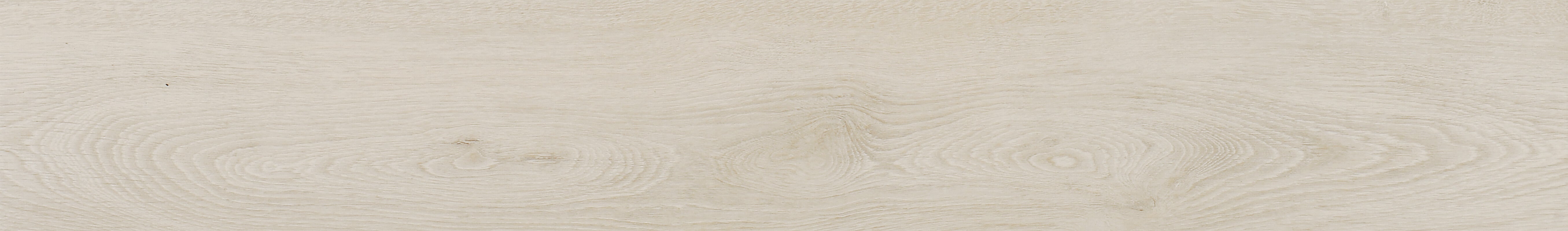

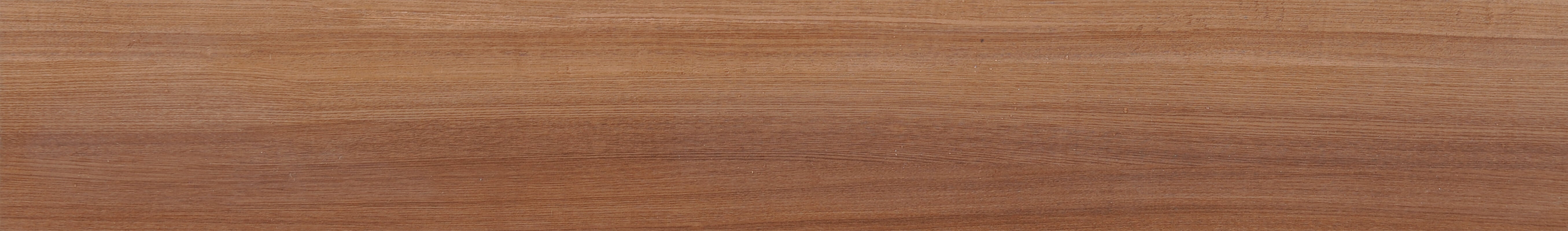

Colours:1161 Greenlank Oak | 1165 Moonlight | 1184 Brushed Oak | 1907 Alpine Oak | 2903 Carlisle Oak | 5805 Yellowish | 6202 Classic | 7207 Oxford | 8716 Light Rustic Oak
Specifications | |
---|---|
Dimension (L x W x T) | 1220 mm x 180 mm x 4.2 mm (48” x 7.1” x 1/6”) |
Surface Material | Virgin PVC |
Texture | Wood Visual |
Protective Wear Layer Thickness | 0.3 mm |
Gloss Level | 10 (+/- 2) |
Surface Finish | UV Matt Coating |
Locking System | Heritage Click Lock |
Edge Finish | Straight Edge |
Packing per carton | 12 pieces (2.6352 m² / 28.365 sqft) |
Packing per pallet | 45 cartons (118.584 m²) |
Pallets per 20’ container | 20 pallets (2371.68 m²) |
Carton dimensions | 1235 mm x 192 mm x 55 mm |
Weight per piece | 1.85 kg |
Weight per sqm | 8.43 kg |
Weight per carton | 22.2 kg |
Weight per pallet | 1,020 kg |
Weight per 20’ container | 20,400 kg |
Performance | ||
---|---|---|
CHARACTERISTIC | RESULT | EN / ASTM Norms |
PRODUCT STABILITY | ||
Dimension | ||
- Squareness | Pass: 0.18 mm | EN 427:1994 / ASTM F 2055 |
- Straightness | Pass: 0.07 mm | EN 427:1994 / ASTM F 2055 |
- Overall Stability | Pass: 0.1% | ISO 23999:2008 / EN 434:1994 / ASTM F 2199 |
Curling after Exposure to Heat | Pass: 0.06 mm | ISO 23999:2008 / EN 434:1994 / ASTM F 2199 |
Residual Indentation after Static Loading |
Pass: 0.06 mm | ISO 24343-1:2007 / EN 433:1994 / ASTM F 970 |
Plank Flexibility | Pass | EN 435:1994 Method A / ASTM F 2199 |
PRODUCT DURABILITY | ||
Resistance | ||
- Wear | Fv: 1.8 mm³. Wear Group: T> 1000 cycles |
ISO 24388-A / EN 660-2:1999+A1:2003 / EN 649:2011 |
- Abrasion | 3000 cycles: Class: AC3 | EN 13329:2006 / A1:2008 |
- Impact | Pass | ASTM F 1265 |
- Castor Chairs | No visible damage after 25000 cycles / under 90 kg |
ISO 4918 / EN 425:2002 |
- Peeling | X direction: 5.5N / 50 mm Y direction: 5.5N / 50 mm |
EN 433:1994 |
- Chemicals and Stains | Pass | ISO 26987 / EN 423:2001 / ASTM F 925:2002 |
- Artificial Light (Colorfastness) | Pass: ≥ Grade 6 | EN 20105:B02 Method A / ASTM F 1515 |
- Thermal | Pass 0.07 W/m-K |
EN 12664:2001 EN 12524:2000 |
- Water | Yes (Suitable for indoor wet areas) | |
Suitability for Underfloor Heating | Suitable(max. 27˚C) | |
PRODUCT SAFETY | ||
Fire Test | ||
- Flame Spread | Pass: Bf1-S1 / Pass: Class I | EN 13501-1:2007 +A1:2009(E) / ASTM E648-06 |
- Smoke Evolution (Smoke Density) | Pass: ≤ 450 | ASTM E622 |
Resistance | ||
- Electrical | Pass: R₁ > 10¹⁰ Ohm Pass: > 2.0 kV on concrete Pass |
EN 1081:1998 Method C EN 1815:1998 ASTM F150-06 |
- Slipping | Pass: R10 / Class DS Pass: 0.1% |
EN 14041:2004/AC:2006 Clause 4.5 / EN 13893:2002 / DIN 51130 ASTM D2047-93 |
ACOUSTIC PROPERTIES | ||
Impact Sound Insulation | 13dB | ISO 140-8:1997 / ISO 717-2:2013 |
ENVIRONMENTAL IMPACT | ||
Toxicity | ||
- Pthalates (DBP / BBP / DEHP / DINP / DNOP / DIDP) |
Pass | EN 14372:2004 |
- Soluble Heavy Metals | Pass: Heavy Metals and formaldehyde not detected |
EN 71-3:1994 |
Formaldehyde Emission | Pass: Class E1 | EN 14041:2004 |
Hygiene | Does not contribute to infection spreading | |
VOC Regulations / Indoor Air Quality | Pass A+ |
ISO 16000-9:2006 FloorScore® |
